Description

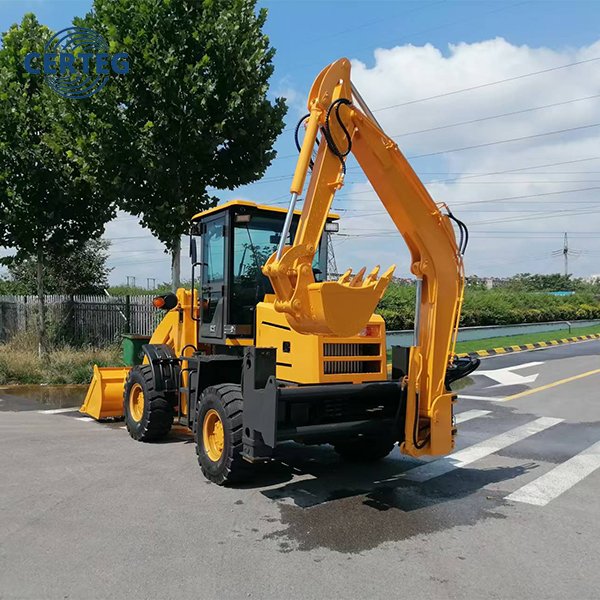

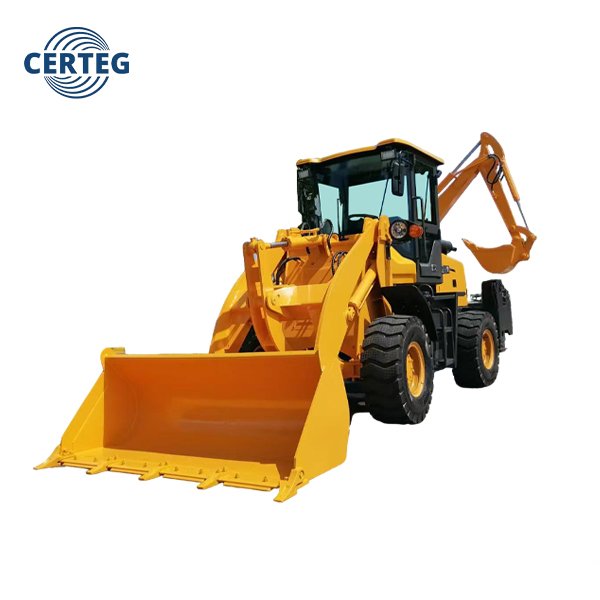

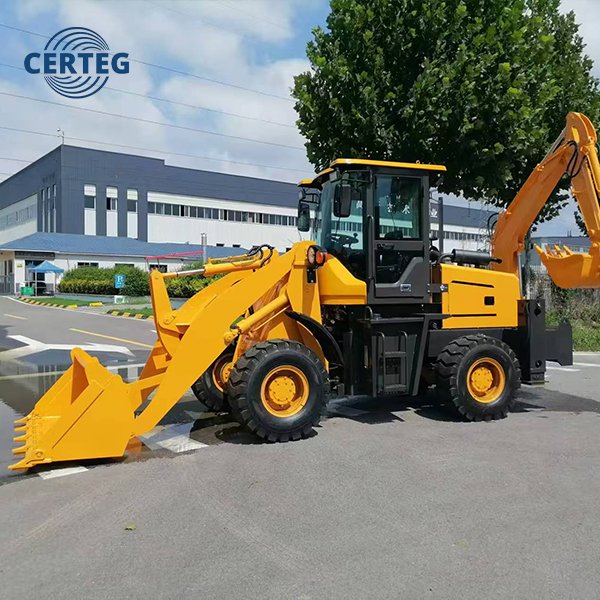

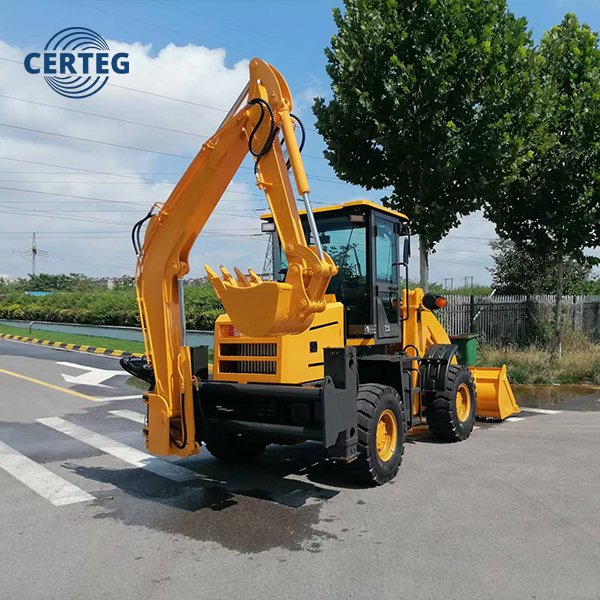

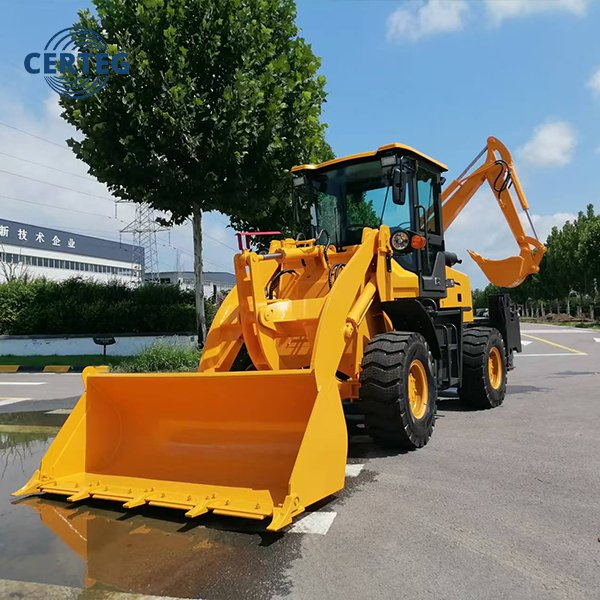

CTB15-20A: The Versatile 3.2 Ton Backhoe Loader for Professionals
Introducing the CERTEG CTB15-20A, a powerful and exceptionally versatile 3.2 ton backhoe loader designed to be the ultimate workhorse for a wide range of applications. This machine delivers the perfect combination of strength, agility, and reliability, making it the ideal choice for demanding contractors, landscapers, and agricultural professionals. At its core, the CTB15-20A features a robust 37 kW Yunnei engine and a heavy-duty Isuzu drive axle, ensuring you have the power to tackle any job with confidence. If you’re looking for a machine that delivers serious performance in a nimble package, the CTB15-20A is engineered for your success.
| Whole Operation Weight | 3200KG |
| Dimension L*W*H mm | 5600*1680*2780 |
| Wheel Base | 1800mm |
| Wheel Tread | 1200mm |
| Min.Ground Clearance | 230 |
| Bucket Capacity | 0.5m³(1600mm) |
| Loading Lifting Capacity | 1000kg |
| Unloading Height of bucket | 2300mm |
| Dumping Distance of bucket | 1325 |
| Backhoe Capacity | 0.15m³ |
| Max.Digging Depth | 2200 |
| Swing Angle of Excavator Grab | 170° |
| Max.Pulling Force | 2T |
| Engine Model | YUNNEI YN25GB |
| Cylinder-Inside Diameter*Stroke | 4-90-100 |
| Rated Power | 37kw |
| Rated Speed | 2200 |
| Max.Torque | 152N.m |
| Steering System | Hydraulic steering |
| Model of Steering Device | 250 |
| Steering Angle | 28° |
| Min.Turning Radius | 3000mm |
| Pressure of the System | 18mpa |
| Drive Axle Model | Isuzu drive axle |
| Main Transmission Type | Hydraulic Gearbox+Torque Converter |
| Transmission System | Transmission shaft |
| Gear Model | 240 |
| Gears | Two advances/two retreats |
| Inlet Pressure | 0.5MPA |
| Outlet Pressure | 18MPA |
| Max.Speed | 20km/h |
| Model Tyre | 20.5/70-16 |
| Optional Tyre | 31*15.5-15 |
| Service Brake | Hydraulic |
| Emergency Brake | Manual |
| Hydraulic System | High pressure gear pump |
| Digging Power of Excavator Grab | 15kn |
| Digging Power of Dipper | 12kn |
| Bucket Lifting Time | 3.5s |
| Bucket Lowering Time | 3.5s |
| Bucket Discharge Time | 2.5s |
Robust & Reliable Powertrain
At its core, the CTB15-20A is driven by a high-performance 37kW (50 HP) YUNNEI YN25GB engine, delivering the power and torque needed for tough applications. The robust powertrain ensures reliability and superior traction in all conditions.
Powerful Front-End Loader
The front-loader is built for maximum productivity, making quick work of material handling, loading, and site clearing.
Precise & Capable Backhoe Excavator
The rear-mounted excavator arm combines strength with precision, offering exceptional control for all your digging and trenching needs.
Ideal Applications
The balanced power and size of this 3.2 ton backhoe loader make it perfect for:
General Construction & Site Development
Landscaping and Hardscaping Projects
Agricultural and Farm Maintenance
Utility and Municipal Work
Rental Fleets
