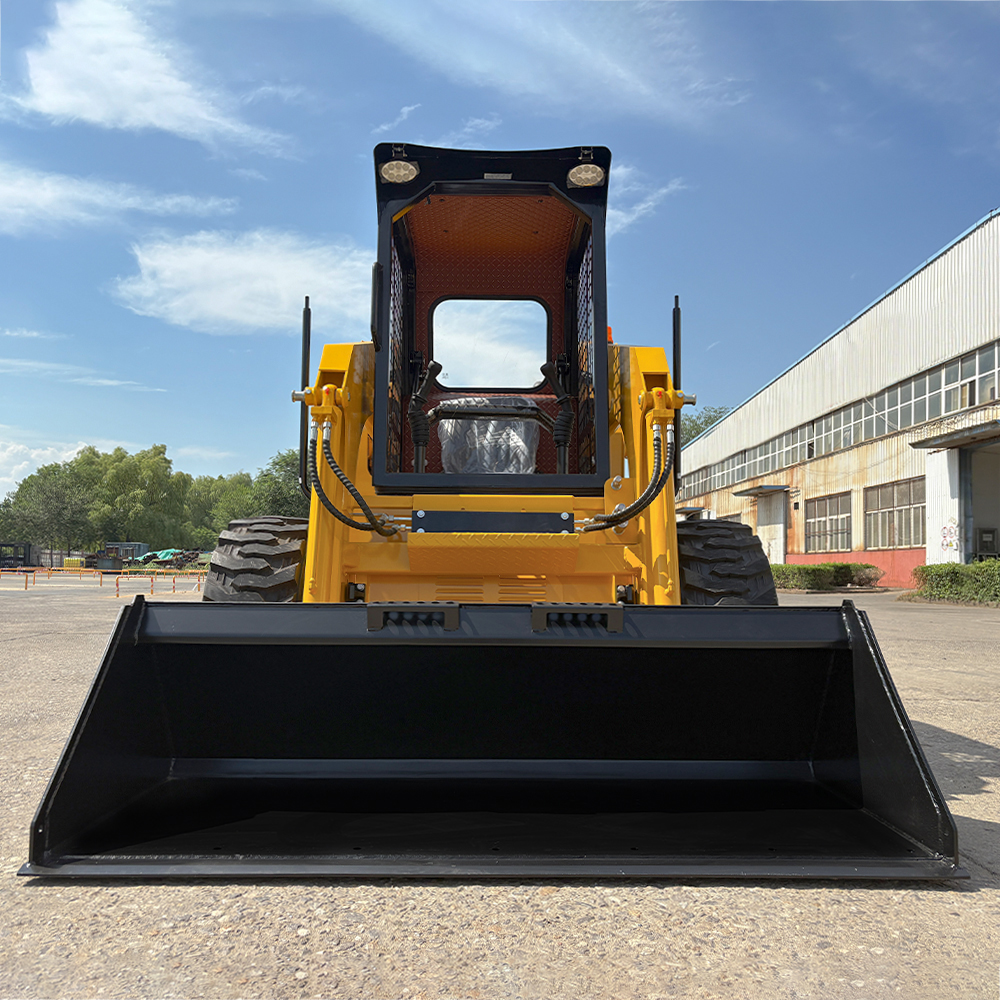

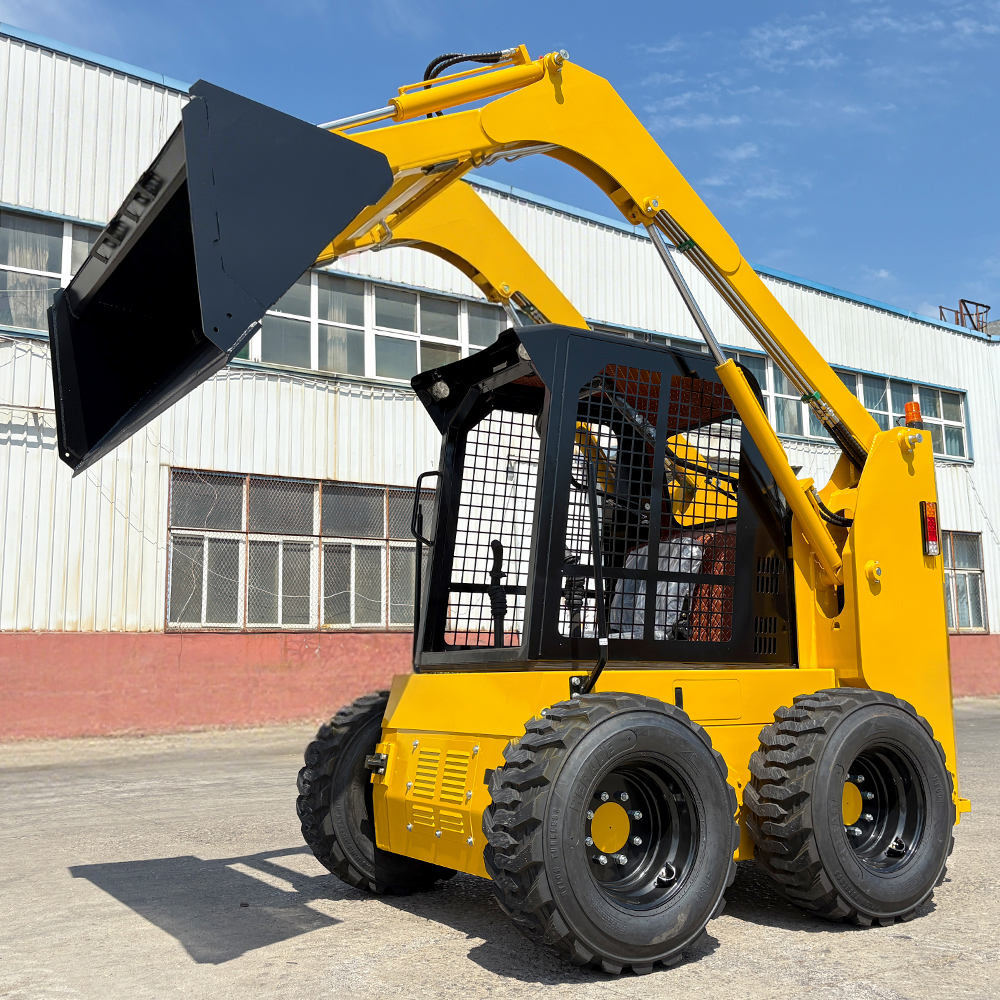

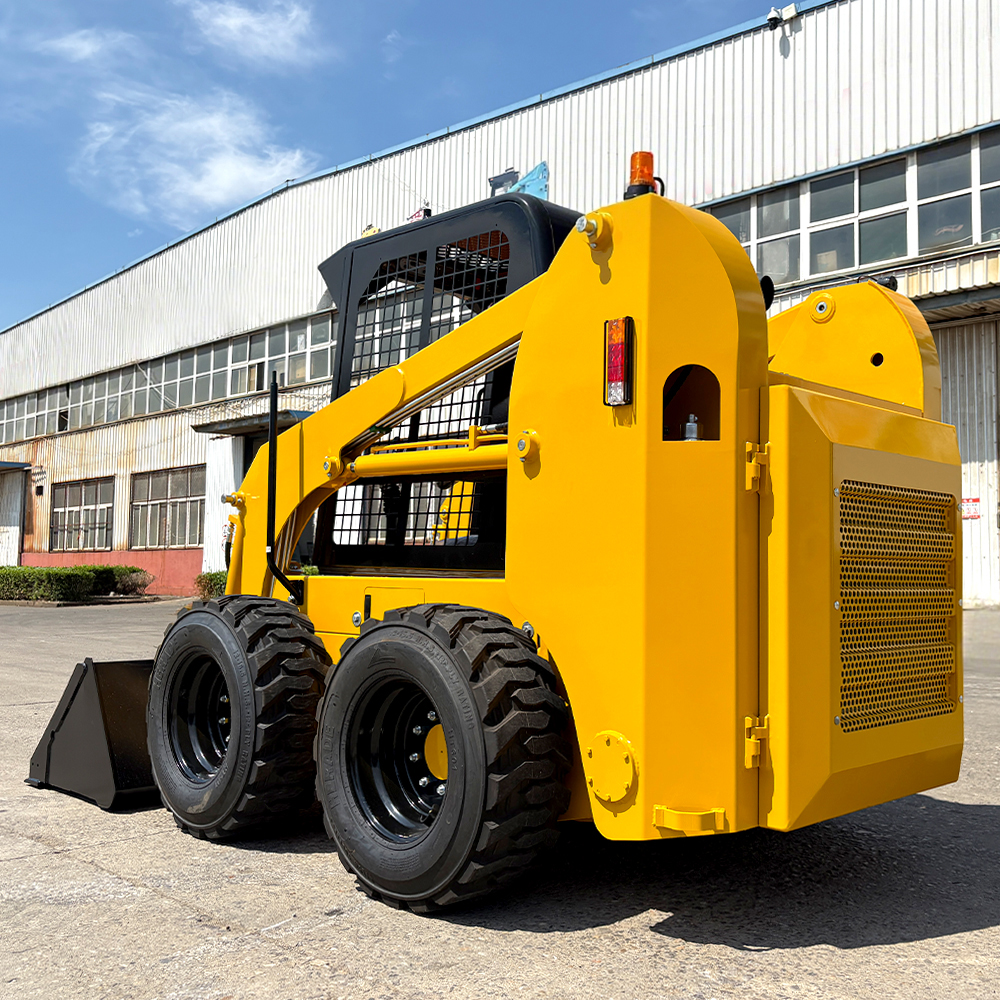

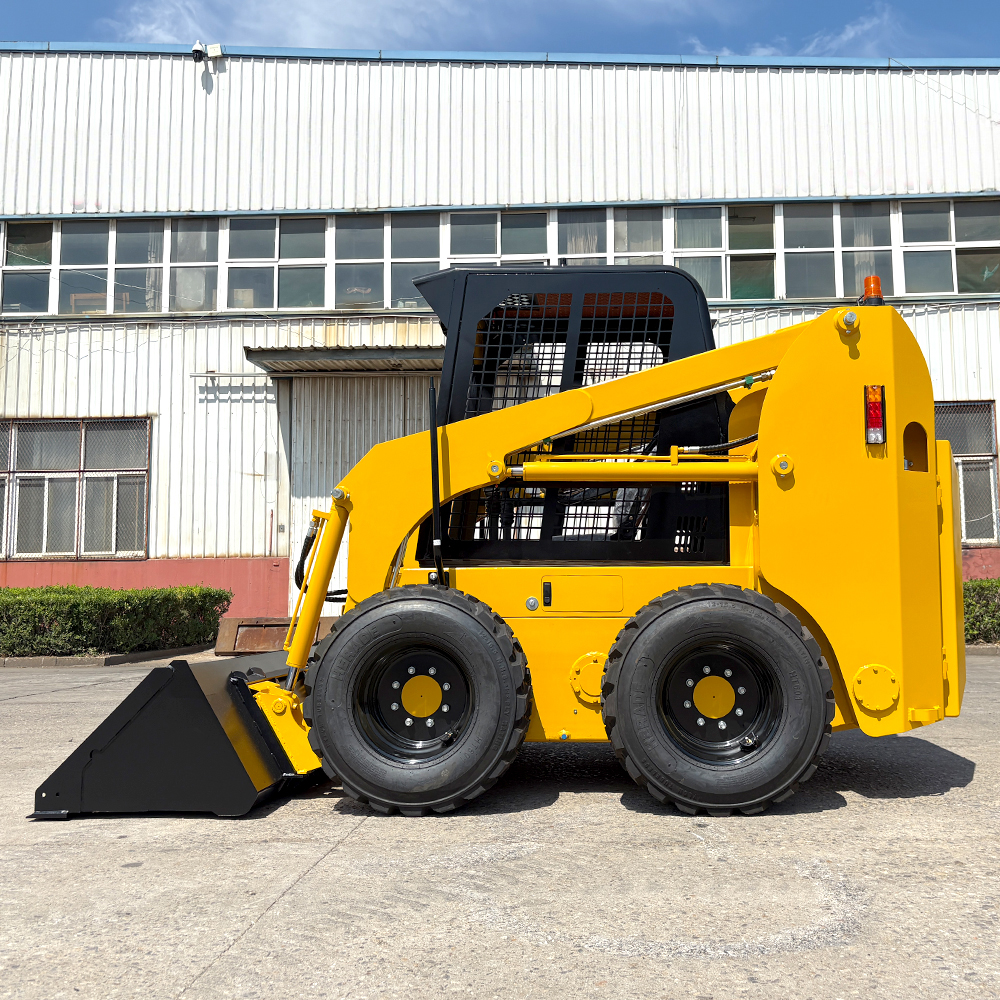

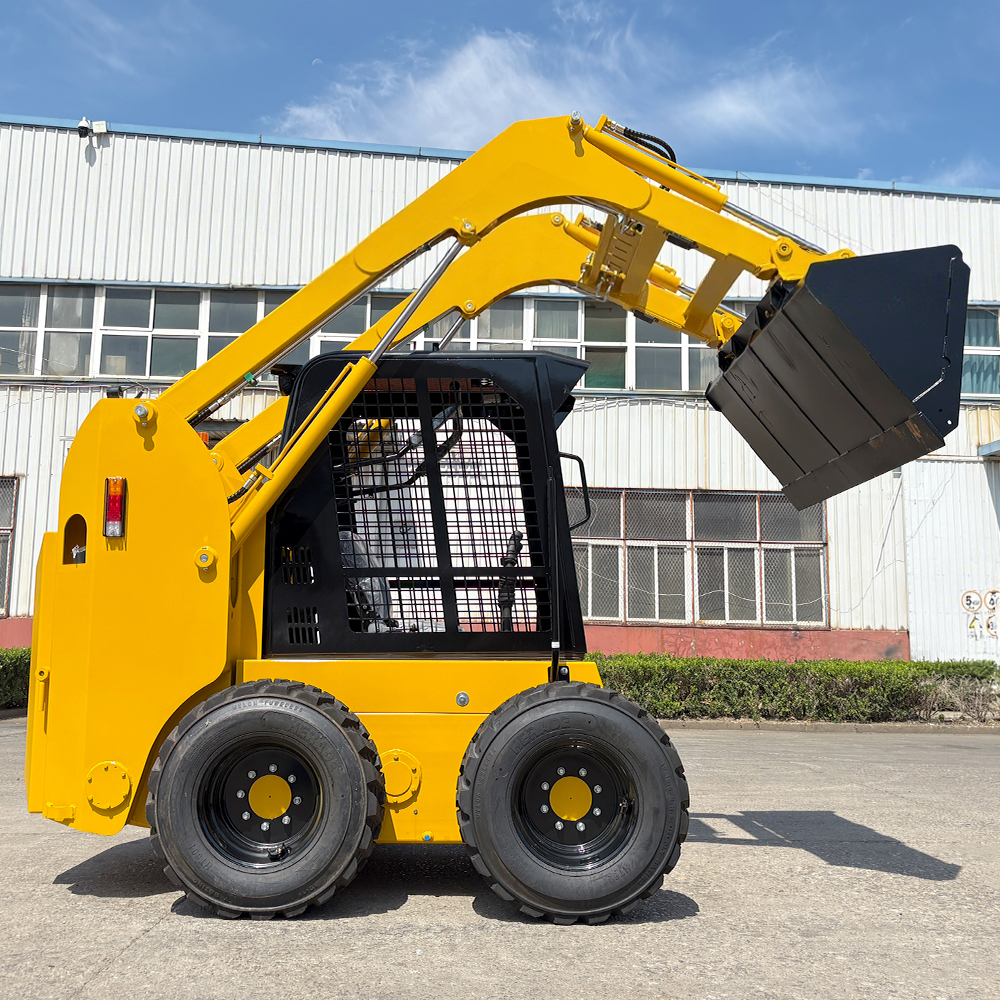

C65 Skid Steer Loader
he company’s main products cover various types of small excavators, skid steer loaders and diverse attachments, which are widely used in agriculture, municipal administration, construction and logistics fields.
Recruiting Agents Globally:
Suitable for businesses/dealers, starting with one unit for overseas warehouses.
Customized for construction projects, not available for retail.
Inventory located at a warehouse near you, ensuring fast delivery and a comprehensive range of accessories.
Customer service is available 24/7.
Fill in your information, receive a quote, and become our agent!
Description
| ERFORMANCE | |
| Operating weight（KG) | 3400 |
| Rated load(KG) | 950 |
| Bucket capacity(m³） | 0.5 |
| Max Speed（KM/H) | 12 |
| Max traction(KN) | ≥28.2 |
| Max breakout(KN) | ≥20 |
| Lifting time of boom(S) | 7 |
| Rated power (KW/RPM) | 55/2500 |
| Engine displacement(L) | 3.17 |
| DIMENSION | |
| Overall operating height(MM) | 4070 |
| Height to bucket hinge pin(MM) | 3150 |
| Height to top of cab(MM) | 2160 |
| Height to bottom of level bucket(MM) | 2983 |
| Without bucket length(MM) | 2880 |
| Overall length with bucket(MM) | 3580 |
| Dumping angle at maximum height（°） | 40 |
| Dumping height(MM) | 2450 |
| Dumping reach(MM) | 700 |
| Rollback of bucket on ground（°） | 30 |
| Rollback of bucket at full height（°） | 104 |
| Wheelbase(MM) | 1115 |
| Ground clearance(MM) | 205 |
| Angle of departure（°） | 20 |
| Front turning radius without bucket(MM) | 1250 |
| Front tuning radius(MM) | 2112 |
| Rear tuning radius(MM) | 1774 |
| Rear axle to bumper(MM) | 1082 |
| Tread width, center line to center line(MM) | 1500 |
| Width between outside of two wheels(MM) | 1880 |
| Bucket width(MM) | 1880 |
Our skid steer loaders can be equipped with a variety of attachments, mainly including buckets, pallet forks, augers, hydraulic breakers, grapples, and trenchers.
Among them, the bucket is the standard tool for loading, carrying, and grading materials like dirt and gravel. Pallet forks transform the machine into a versatile forklift for lifting and moving palletized goods. The auger is used for fast and efficient drilling of holes for posts, fences, and footings. The hydraulic breaker can break hard surfaces such as concrete and asphalt.
The grapple is used to handle irregular materials such as logs, brush, and demolition debris. Trenchers are used to create clean, straight trenches for utilities and irrigation lines. These attachments enable our skid steer loaders to have a wider range of operational capabilities in fields such as construction, landscaping, and agriculture.
You can choose the corresponding attachments according to your own needs.
