CT20 Mini Excavator
The company’s main products cover various types of small excavators, skid steer loaders and diverse attachments, which are widely used in agriculture, municipal administration, construction and logistics fields.
Recruiting Agents Globally:
Suitable for businesses/dealers, starting with one unit for overseas warehouses.
Customized for construction projects, not available for retail.
Inventory located at a warehouse near you, ensuring fast delivery and a comprehensive range of accessories.
Customer service is available 24/7.
Fill in your information, receive a quote, and become our agent!
Description

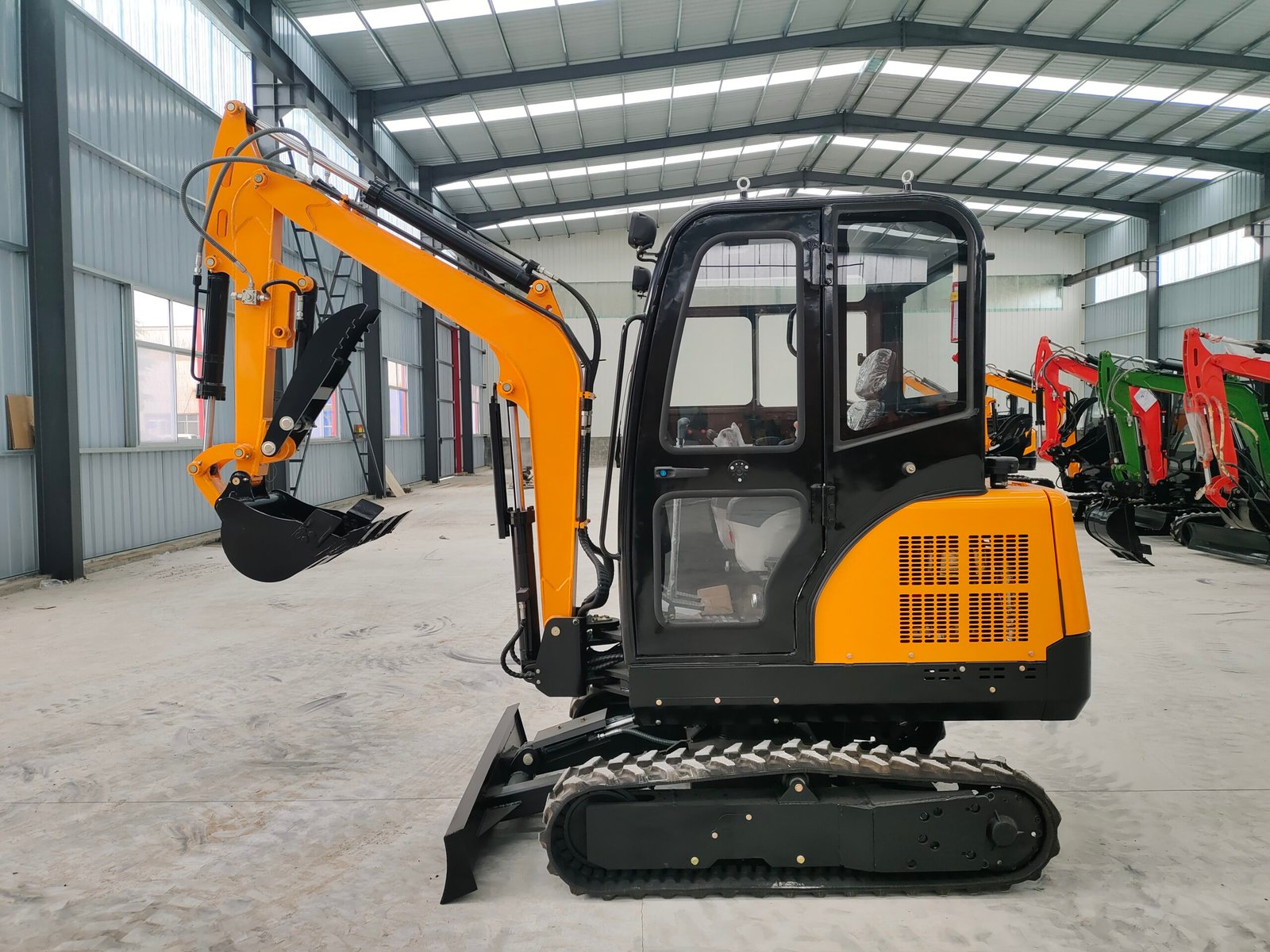

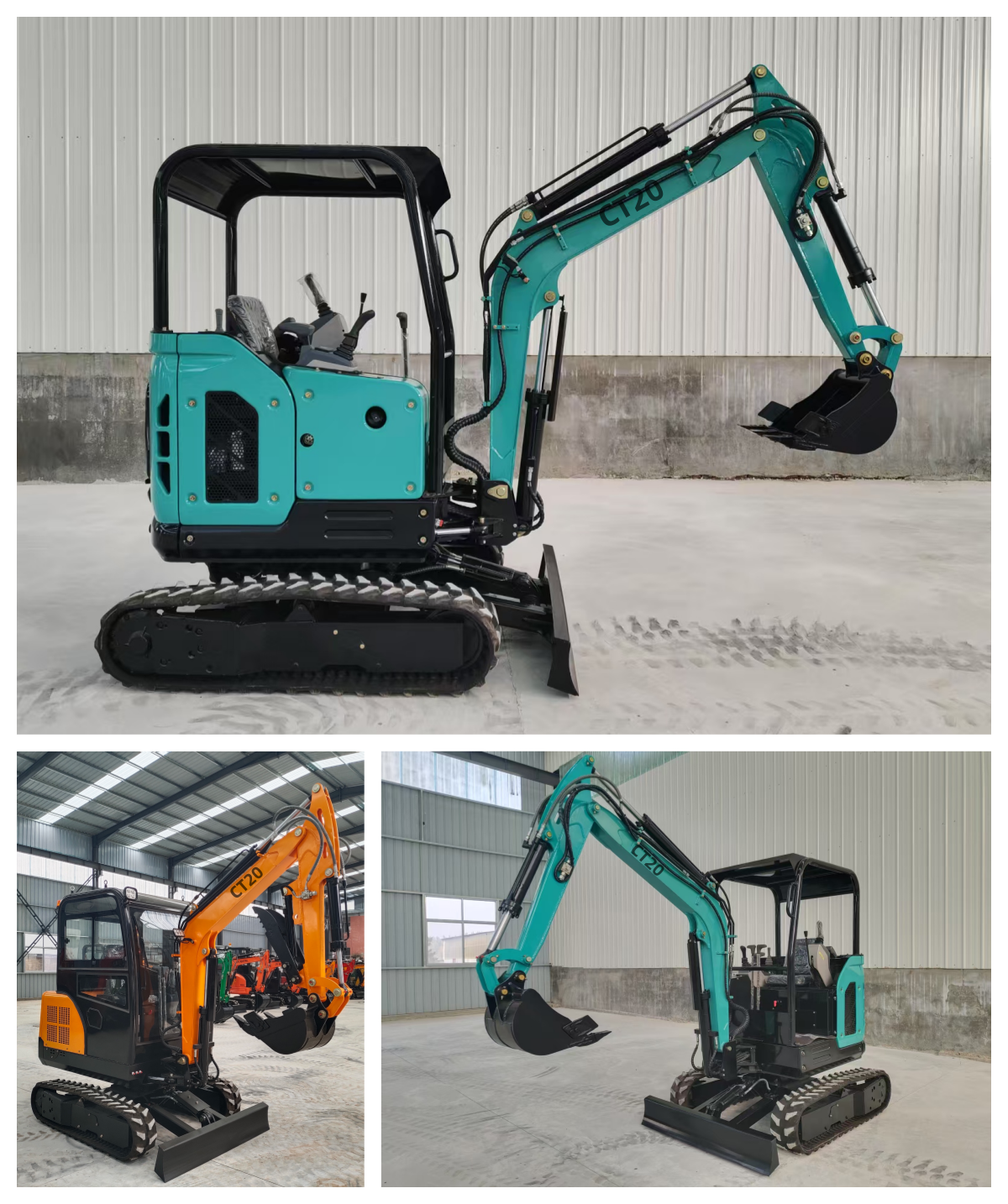

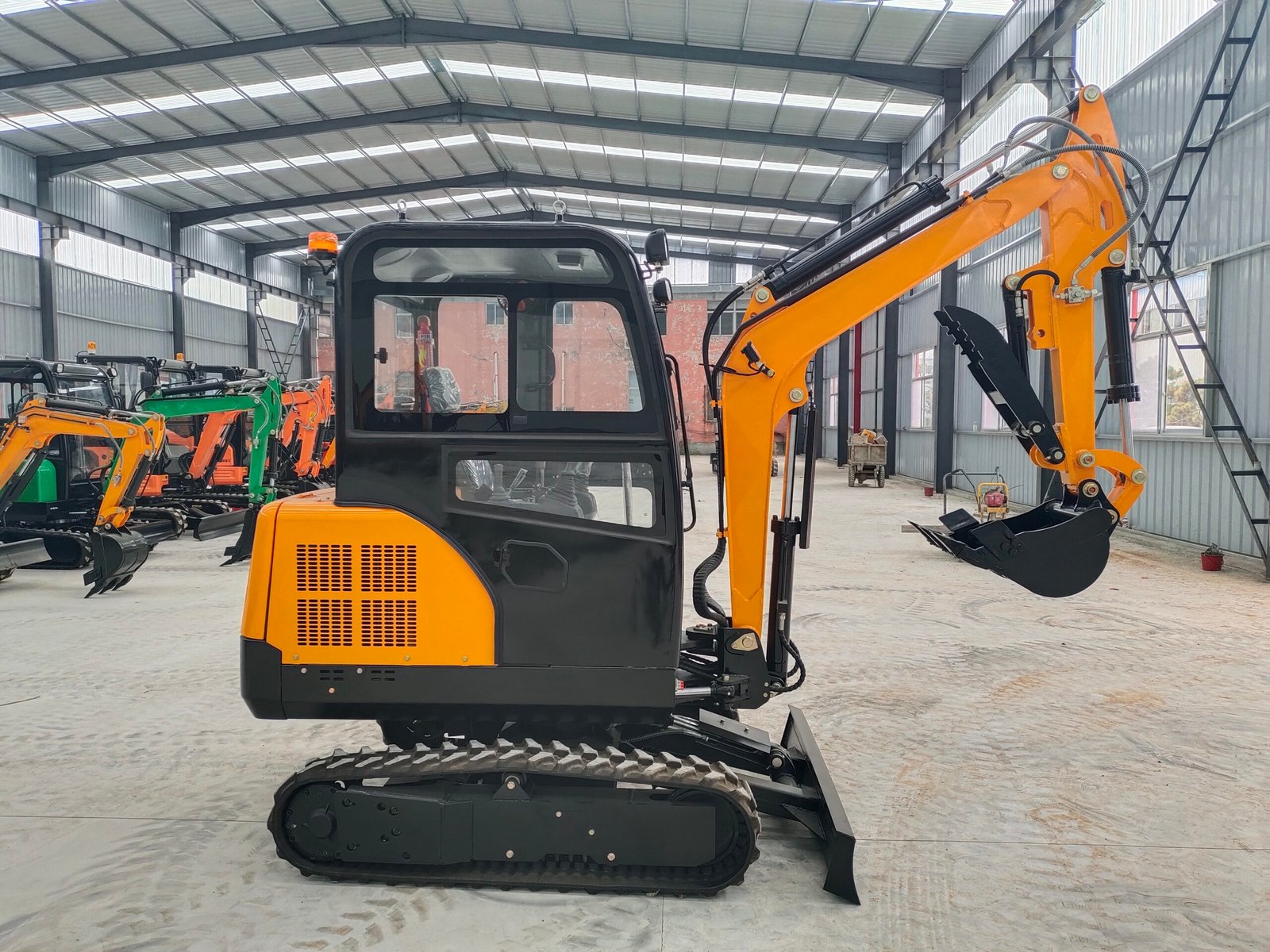

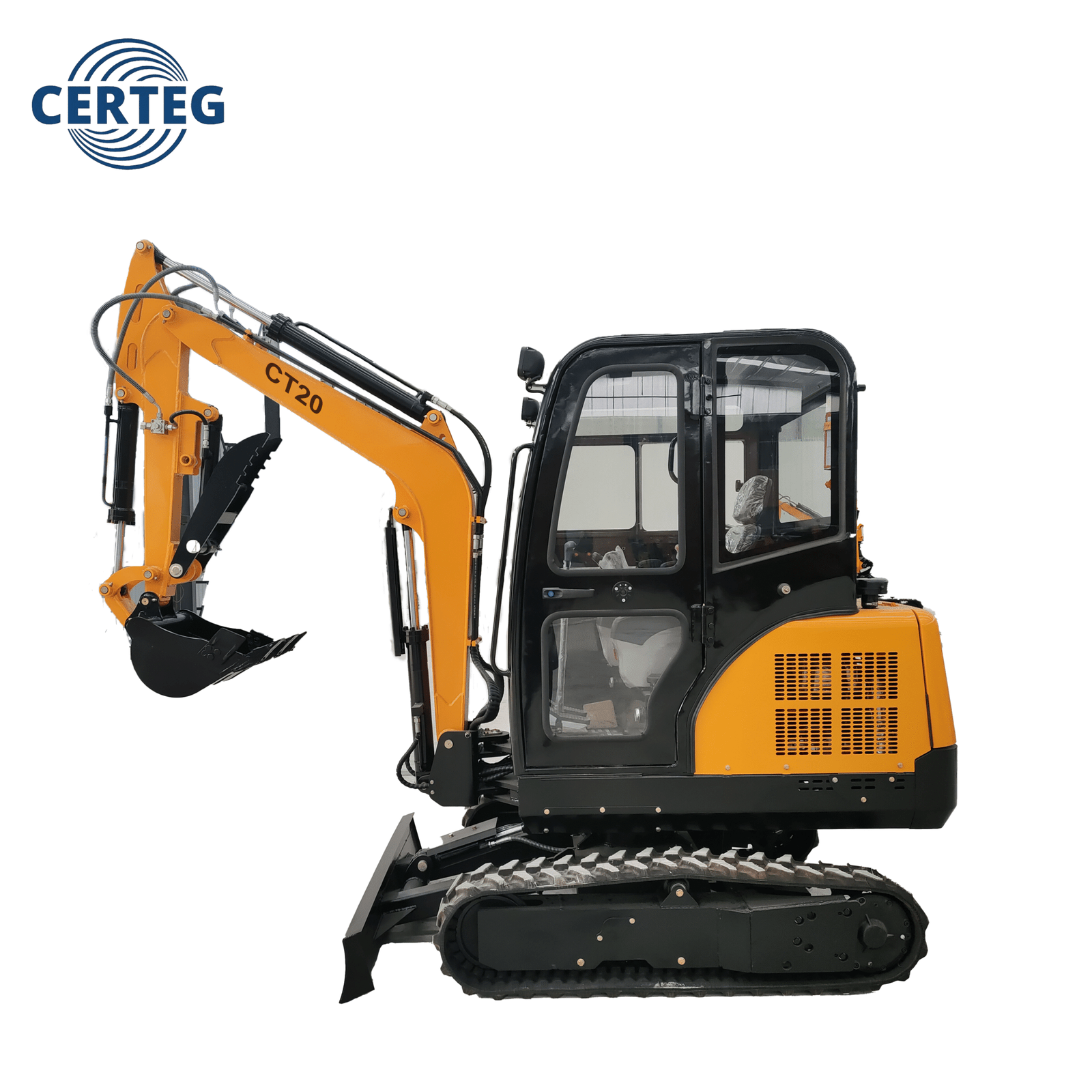

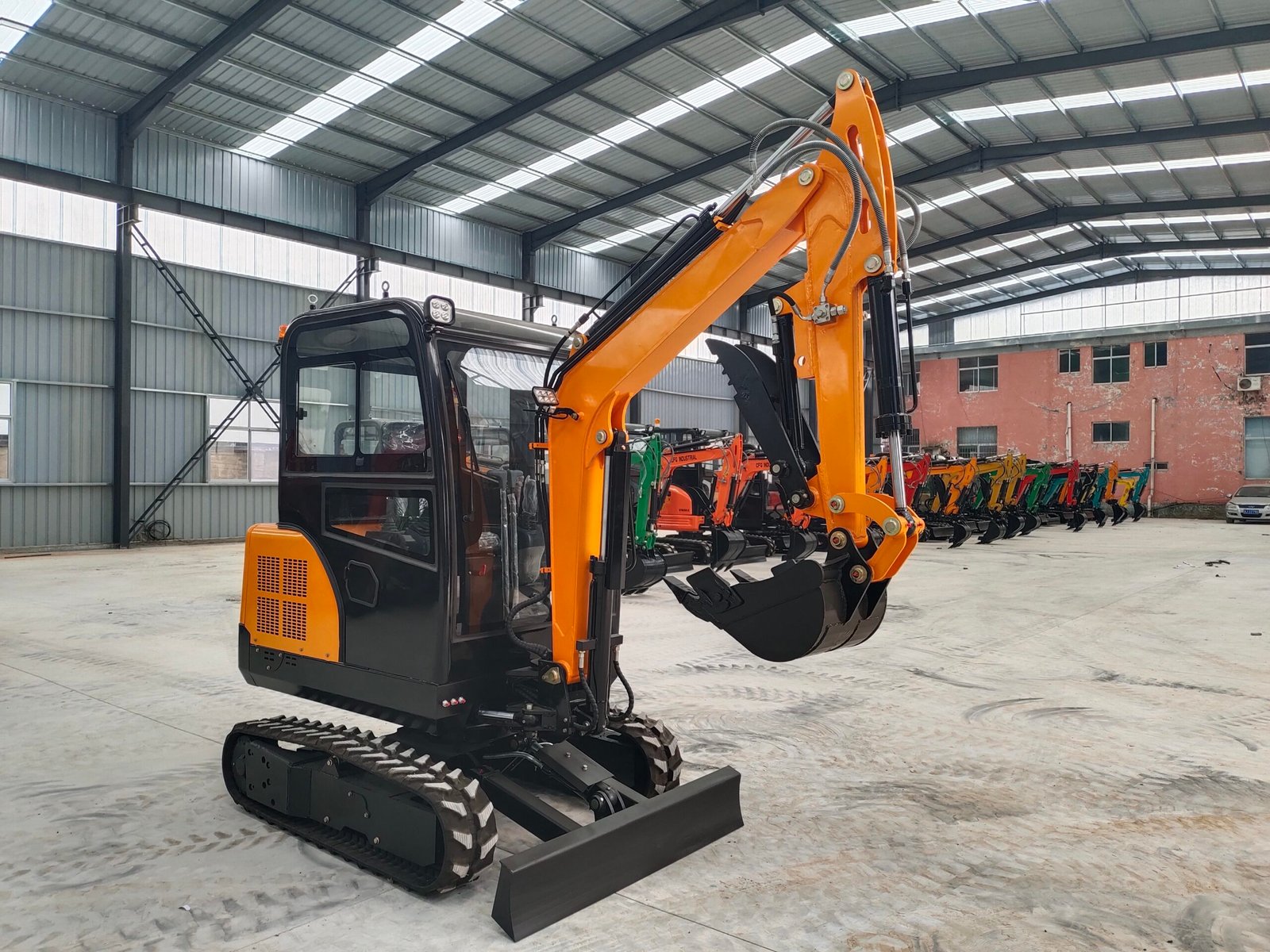

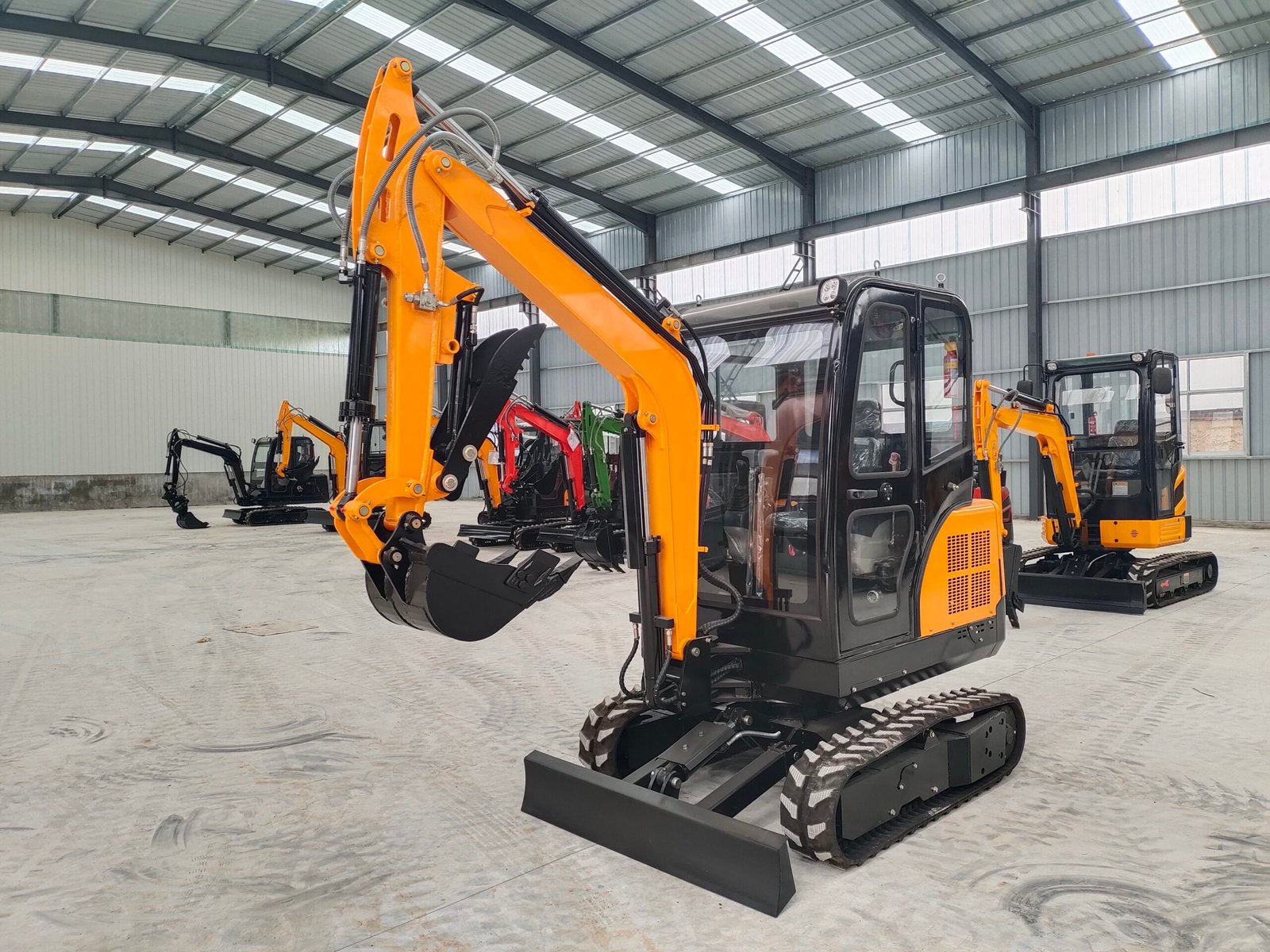

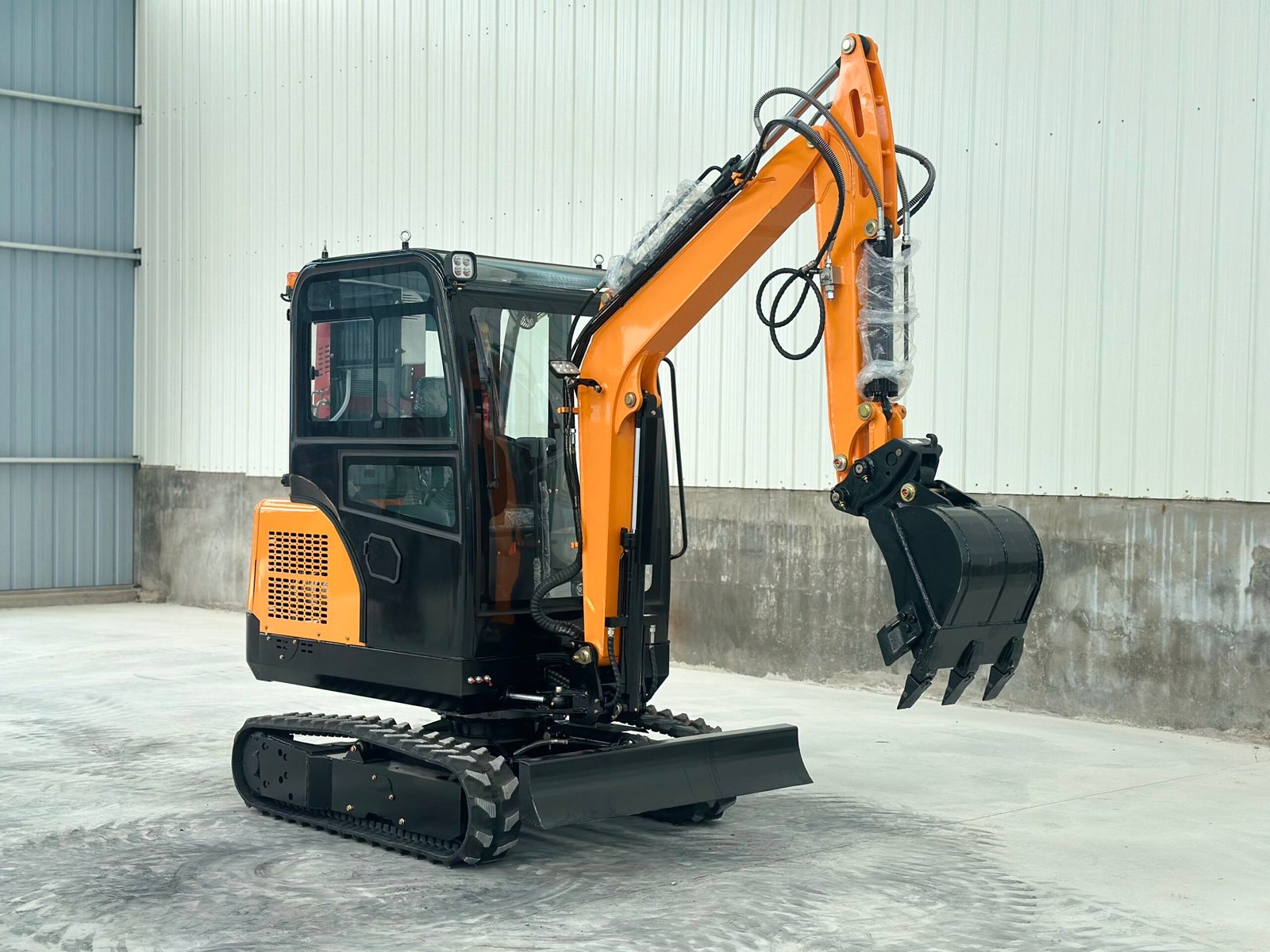

The Certeg CT20 marks a new standard for performance in the 2.0-ton class. Engineered for contractors and professionals who demand more from their compact equipment, the CT20 delivers a significant boost in power, digging depth, and stability.
It’s the perfect upgrade for growing businesses, providing the capability to take on tougher jobs like small demolitions, deeper utility trenching, and faster loading. With the CT20, you don’t just get a bigger machine; you get a bigger competitive advantage.
| MAIN DIMENSIONS | |
| Overall Length（mm） | 3900 |
| Overall Width（mm） | 1060 |
| Overall Height（mm） | 2145 |
| Track Width（mm） | 230 |
| Track Length（mm） | 1650 |
| Body Width（mm） | 1060 |
| SPECIFICATION | |
| Operation Weight（t） | 2ton |
| Rated Power | 18.1kw |
| Digging Bucket Capacity（m³） | 0.06 |
| Bucket Width | 430mm |
| Travel Speed（km/h） | 2.5kw/h |
| Swing Speed | 10r/min |
| Body Swing Radius | 1132 |
| Body Swing Angel | 360 |
| Boom Swing Angel (L/R) | 55/45 |
| Max. Grade Ability | 35 |
| Fuel Tank（L) | 29L |
| Hydraulic Oil Tank（L) | 36L |
| WORKING RANGE | |
| Max. Digging Radius（mm） | 4112 |
| Max Digging Depth（mm） | 2418 |
| Max. Digging Height（mm） | 3210 |
| Max. Unloading Height（mm） | 2125 |
| Min. Swing Radius（mm） | 2148 |
| Max. Digging Depth Of Dozer Blade（mm） | 297 |
| Max. Lifting Height Of Dozer Blade（mm） | 230 |
The CT20 mini excavator, with a digging depth of 2418mm and a digging radius of 4112mm, is highly suitable for operations such as foundation engineering and public facility pipelines. It can easily enter narrow Spaces. This cost-effective and powerful excavator is an ideal choice for DIY enthusiasts and small contractors who wish to maximize their funds. It is the most economical choice in this series and the first choice for anyone entering the mini excavator field.
Our small excavators can be equipped with a variety of auxiliary tools, mainly including breakers, hydraulic shears, grabs, buckets, vibratory rammers, etc. Among them, the breaker hammer can break hard objects such as rocks and concrete. Hydraulic shears can cut steel bars, metal components, etc. The grab is used to grasp materials such as stones, wood and garbage. Buckets of different specifications can adapt to various operations such as digging and loading. Vibratory compactors are used to compact roadbeds, foundations, etc. These auxiliary tools enable small excavators to have a wider range of operational capabilities in fields such as construction, municipal works, and agriculture. You can choose the corresponding assistive devices according to your own needs.
