Description

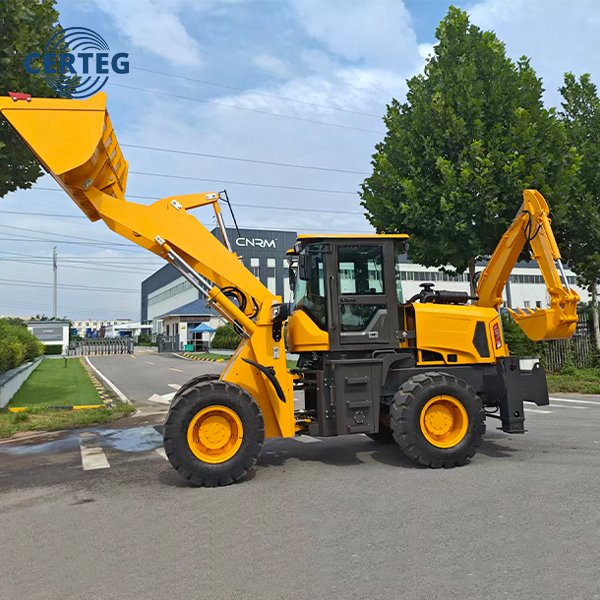

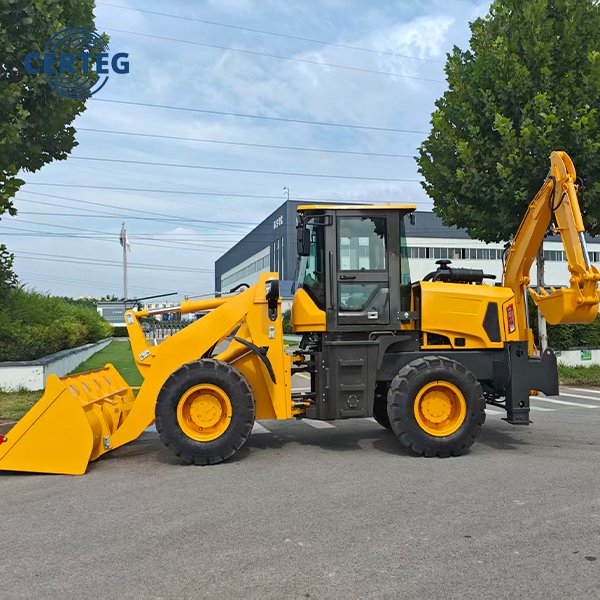

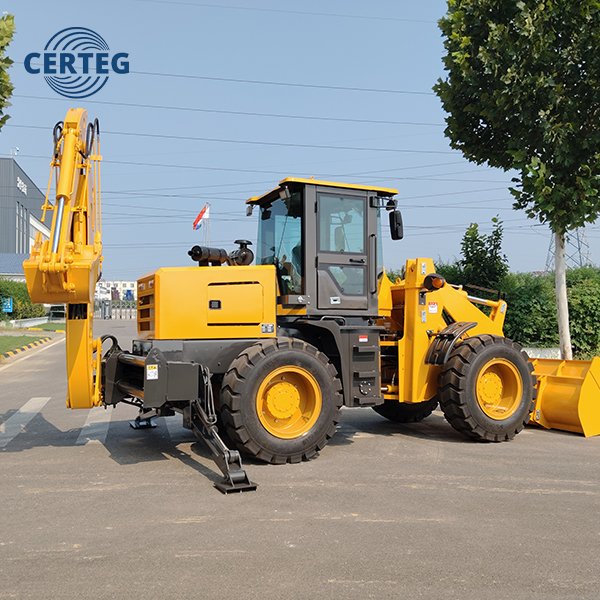

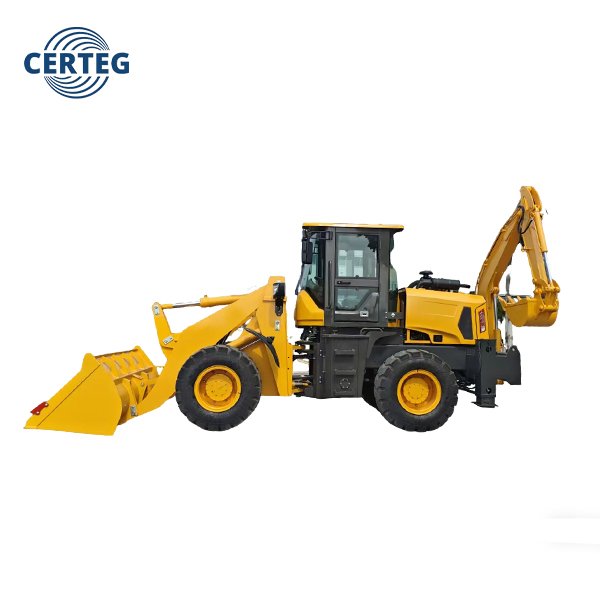

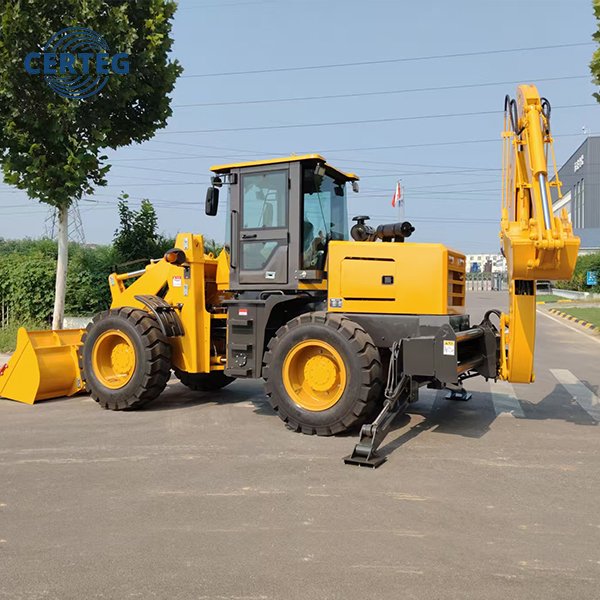

CTB15-26: The Ultimate Heavy-Duty 4WD Backhoe Loader
CERTEG CTB15-26, a heavy-duty backhoe loader engineered for maximum power, performance, and durability. At its core, this machine is a true workhorse, built to excel in the most demanding environments. Featuring a formidable 58 kW turbocharged engine, a robust 4-Wheel Drive system, and truly impressive digging and loading capabilities, the CTB15-26 stands as the ultimate all-in-one solution for large-scale construction, agriculture, and municipal projects. Therefore, when your job demands superior strength and uncompromising reliability, the CTB15-26 is the machine you can count on.
| Category | Parameter | Value |
| Overall Dimensions | Overall Dimensions (L×W×H) | 5800 × 1850 × 2750 mm |
| Wheelbase | 2315 mm | |
| Axle Track | 1500 mm | |
| Min. Ground Clearance | 220 mm | |
| Performance | System Pressure | 16 MPa |
| Overall Weight | 4500 kg | |
| Max. Travel Speed | 26 km/h | |
| Max. Gradeability | 25° | |
| Min. Turning Radius | 4000 mm | |
| Loader Specs | Max. Dumping Height | 3300 mm |
| Max. Dumping Distance | 850 mm | |
| Bucket Width | 1900 mm | |
| Bucket Capacity | 0.7 m³ | |
| Max. Lifting Height | 4200 mm | |
| Max. Breakout Force | 36 kN | |
| Bucket Cycle Time | 12 s | |
| Backhoe Specs | Max. Digging Depth | 2700 mm |
| Digging Dumping Height | 2200 mm | |
| Max. Digging Radius | 4600 mm | |
| Bucket Width | 500 mm | |
| Bucket Capacity | 0.2 m³ | |
| Max. Digging Height | 4200 mm | |
| Max. Digging Force | 28 kN | |
| Swing Angle | 180° | |
| Engine | Model | Yunnei YN27GBZ |
| Type | Turbocharged, 4-Stroke | |
| Rated Power | 58 kW | |
| Rated Speed | 2400 r/min | |
| Cylinder No. – Bore | 4 – 90 mm | |
| Drivetrain | Transmission Type | Powershift, Fixed Shaft |
| Gears | 2 Forward, 2 Reverse | |
| Torque Converter Model | ZL29A | |
| Drive Type | 4-Wheel Drive (4WD) | |
| Steering & Axle | Steering Type | Articulated Full Hydraulic |
| Steering Angle | 33° | |
| Axle Type | Wheel-end Reduction | |
| Brakes & Tires | Tire Specification | 23.5-16 |
| Tire Pressure (Front/Rear) | 250 KPa | |
| Service Brake | Air-over-hydraulic Disc Brake | |
| Parking Brake | Manual | |
| Braking Distance | 450 mm | |
| Fluid Capacities | Fuel Tank Capacity | 40 L |
| Hydraulic Oil Tank Capacity | 40 L |
Dominant Turbocharged Power & Drivetrain
The heart of the CTB15-26 is its powerful 58 kW (78 HP) YN27GBZ turbocharged engine, providing exceptional torque and performance for heavy-duty tasks while maintaining impressive fuel efficiency. To translate this power into unstoppable performance, the CTB15-26 features an advanced drivetrain engineered for maximum traction and control.
High-Capacity, High-Productivity Front Loader
Harnessing this incredible powertrain, the front-end loader is designed for maximum material handling efficiency. It boasts an impressive 36 kN breakout force to power through any task.
Deep-Digging, Long-Reach Backhoe
Equally impressive, the rear-mounted excavator arm combines raw power with a massive working range, making it perfect for large-scale excavation, trenching, and site preparation.ation.
Ideal Applications
The robust construction and 4WD capability of this construction backhoe for sale make it perfect for:
Heavy-duty Construction & Site Preparation
Roadbuilding and Municipal Infrastructure
Large-Scale Agricultural & Earthmoving Projects
Utility and Pipeline Installation
Rental Fleets serving professional contractors
