Description

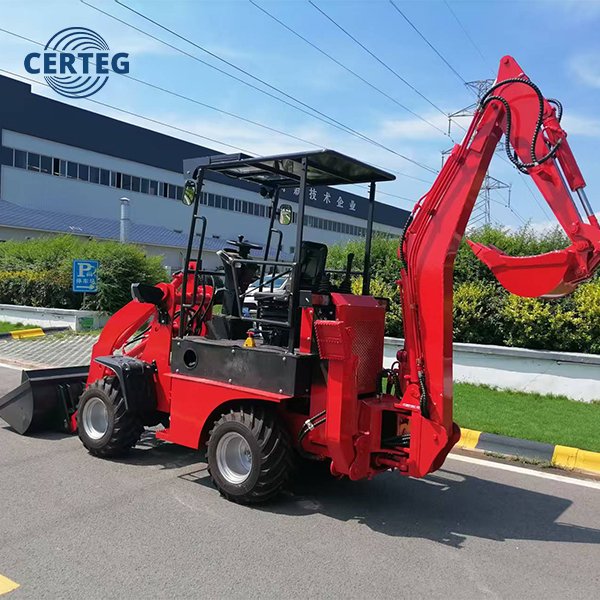

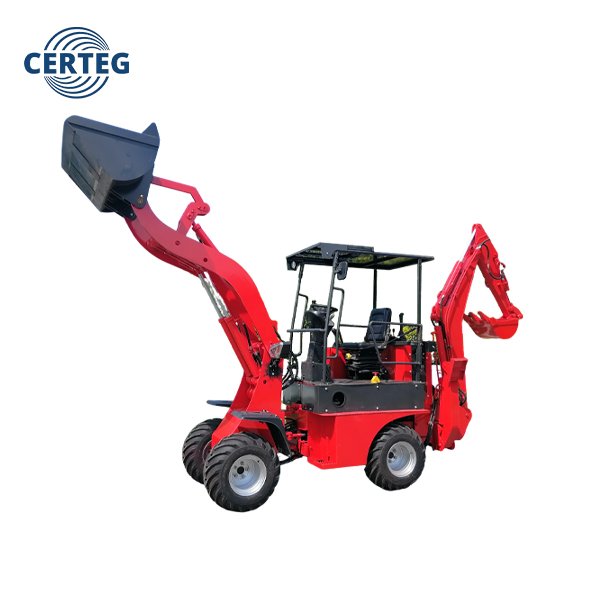

CTB06-10: The Ultimate Compact Backhoe Loader for Tight Spaces
Unlock maximum efficiency on every job site with the CERTEG CTB06-10 Backhoe Loader. Engineered for contractors and professionals who demand both power and precision, this machine is the ultimate solution for complex projects in confined spaces. The CTB06-10 masterfully combines the functionality of a powerful wheel loader with the agility of a compact excavator, eliminating the need for multiple machines. By reducing your equipment footprint and boosting on-site productivity, the CTB06-10 is not just a tool—it’s a smart investment designed to deliver an exceptional return.
| Category | Parameter | Value |
| Overall Machine | Model | CTB06-10 |
| Rated Load | 600 kg | |
| Overall Weight | 1800 kg | |
| Bucket Width | 1150 mm | |
| Bucket Capacity | 0.2 ㎥ | |
| Max. Gradeability | 25° | |
| Min. Ground Clearance | 175 mm | |
| Wheelbase | 1618 mm | |
| Axle Track | 840 mm | |
| Dumping Angle | 40° | |
| Max. Dumping Height | 2000 mm | |
| Max. Dumping Distance | 1000 mm | |
| Max. Lifting Height | 3000 mm | |
| Overall Dimensions (L*W*H) | 5000 *1150 *2800 mm | |
| Min. Turning Radius | 2600 mm | |
| Engine Model | D1105-EF02 | |
| Engine Power | 18.2 kW | |
| Pump Model | ZMS-195R 034/02-23 | |
| Max. Digging Depth | 2000 mm | |
| Max. Digging Dumping Height | 2600 mm | |
| Max. Digging Radius | 2500 mm | |
| Backhoe Bucket Width | 400 mm | |
| Backhoe Bucket Capacity | 0.08 ㎥ | |
| Max. Digging Height | 3640 mm | |
| Backhoe Swing Angle | 120° | |
| Hydraulic System | Transmission System | Full Hydraulic Closed-Circuit |
| Travel Control | Electric Control | |
| Working Pump Flow | 034/02-23 | |
| Travel Motor Displacement | 245 ml/r | |
| Max. Working Pressure | 200 bar | |
| Max. Travel Speed | 20 km/h | |
| Electrical System | System Voltage | 12V |
| Battery Capacity | 80 Ah | |
| Tires | Tire Model | 26×12-12 |
| Tank Capacity | Hydraulic Oil Tank Capacity | 30 L |
| Fuel Tank Capacity | 30 L |
Powerful & Efficient Performance
At the heart of the CTB06-10 is a reliable 18.2 kW D1105-EF02 engine, providing ample power for both loading and digging functions while maintaining excellent fuel efficiency. Paired with a full hydraulic closed-circuit transmission, it delivers smooth, responsive power with a maximum travel speed of 20 km/h, allowing you to move quickly around the job site.
Unbeatable Agility in Confined Areas
The front-loader is designed for serious material handling. With a robust 600 kg rated load capacity and a 0.2 m³ bucket, it makes quick work of moving soil, gravel, and other materials.
Built for reliability, the CTB06-10 features a powerful hydraulic system operating at a maximum pressure of 200 bar, ensuring strong and consistent digging and lifting force. The dependable 12V electrical system with an 80Ah battery guarantees easy starts and reliable operation of all electric controls.
Ideal Applications
The versatility of this compact backhoe loader makes it the perfect choice for:
Landscaping & Garden Design
Residential Construction & Foundation Work
Utility Trenching (Pipes, Cables)
Farming & Small Agricultural Tasks
Municipal Maintenance in Urban Areas
