Description
Description

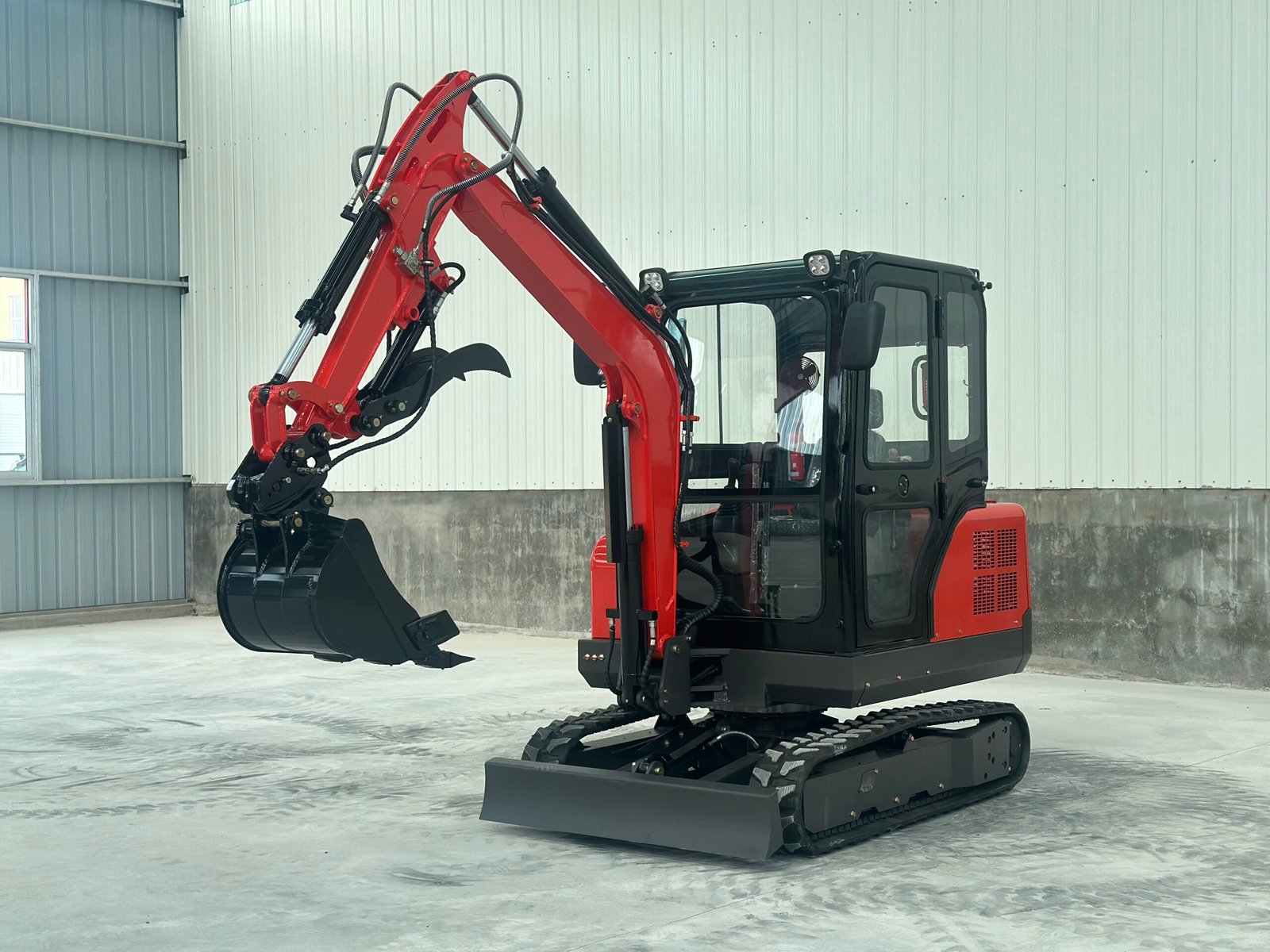

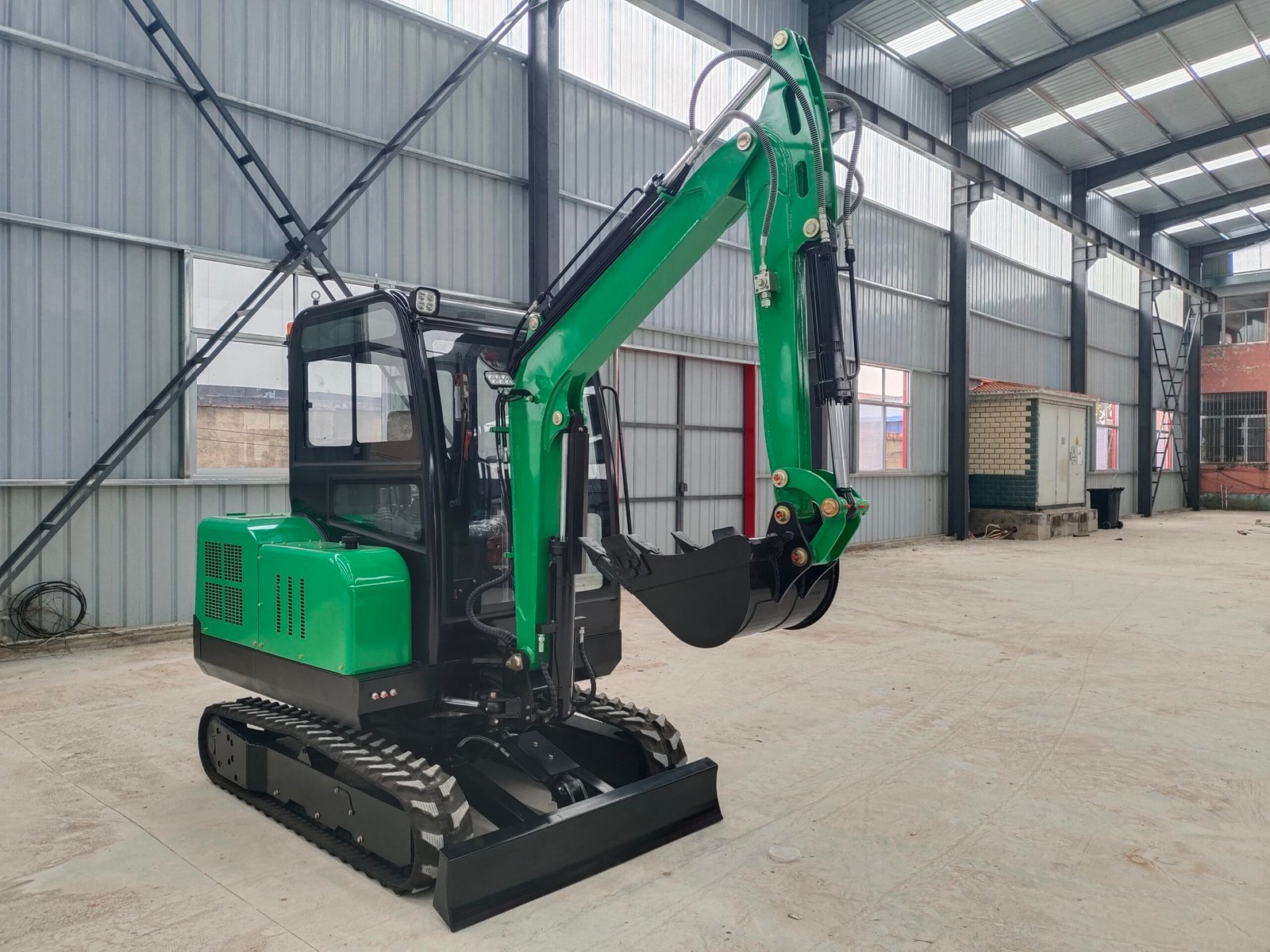

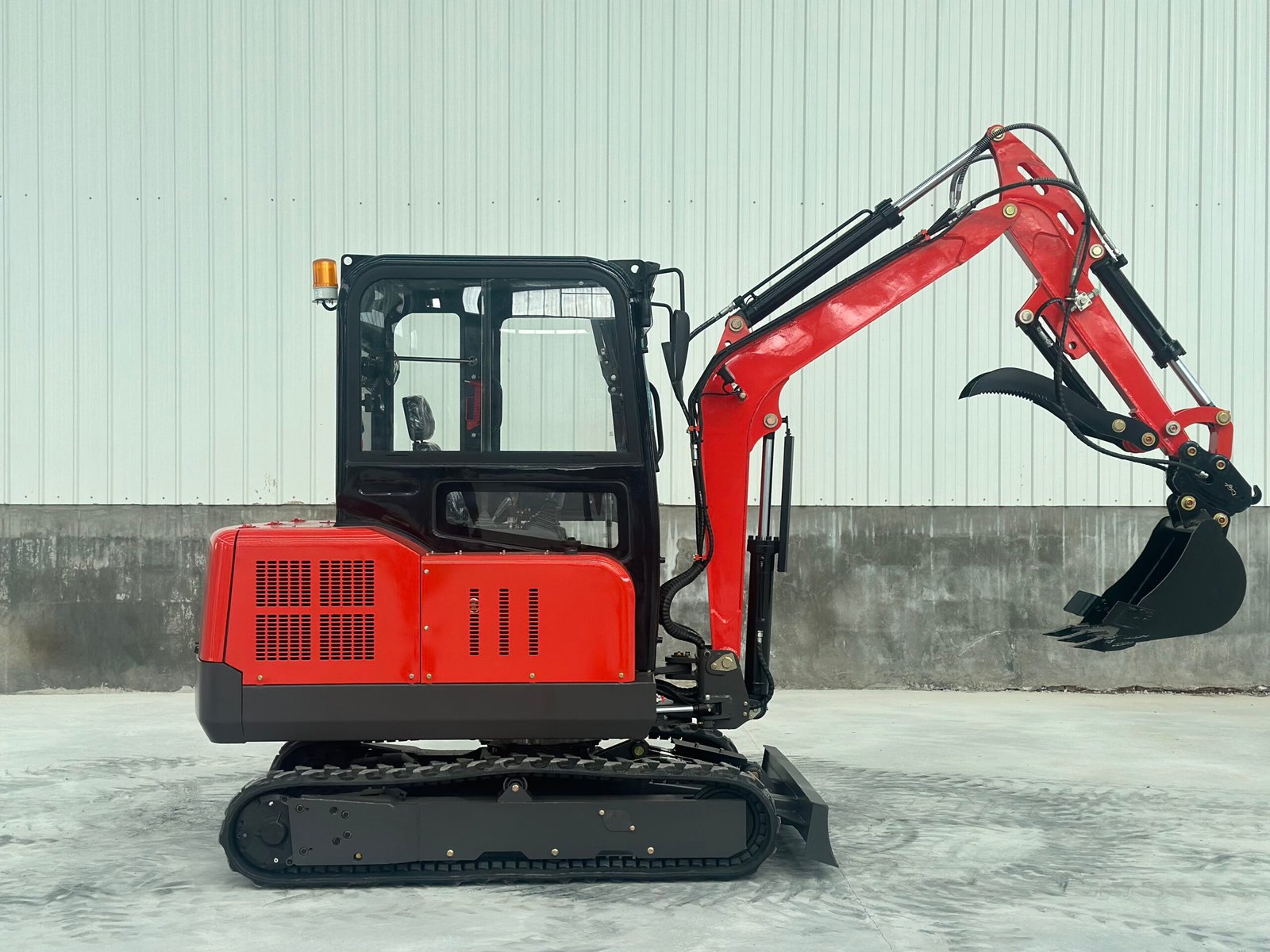

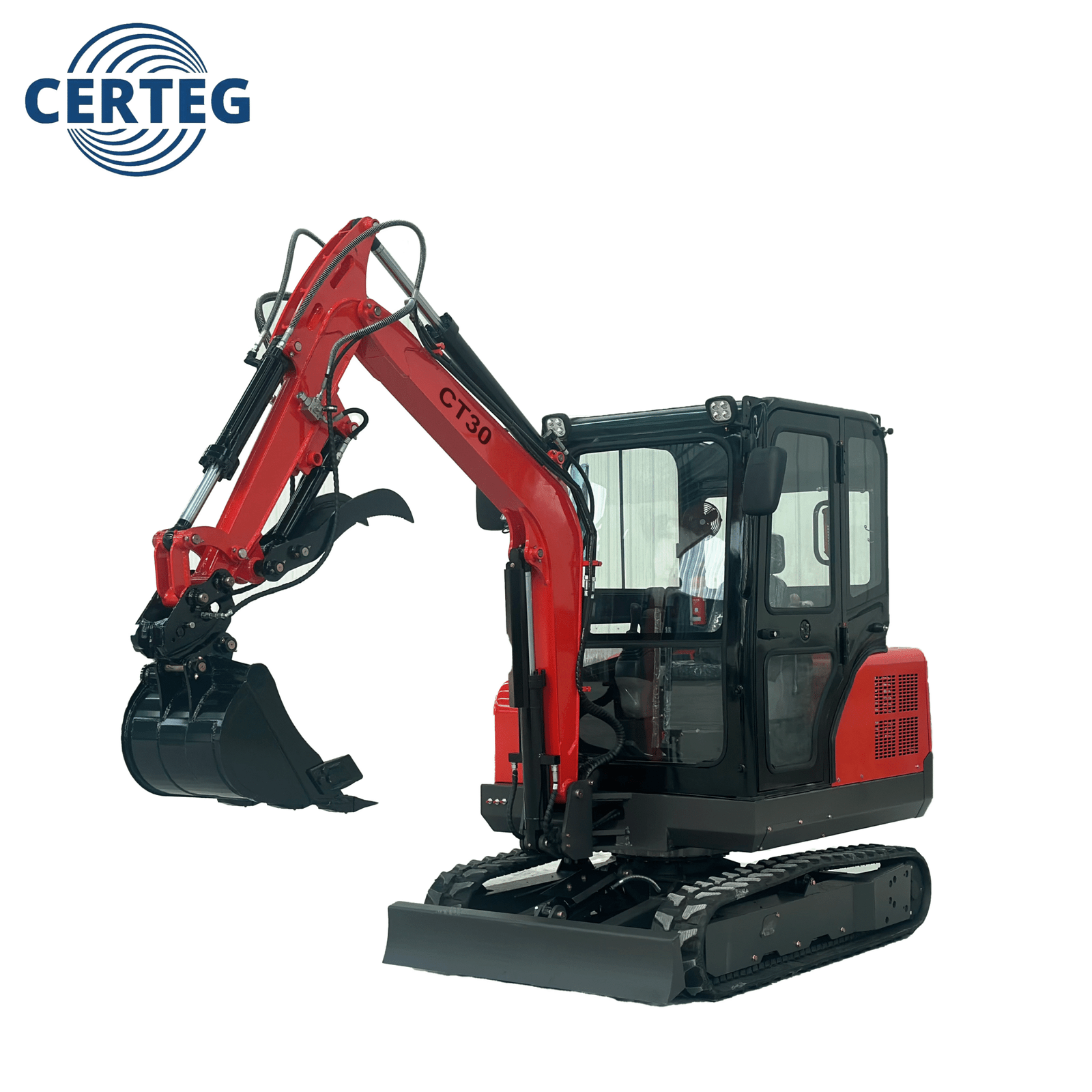

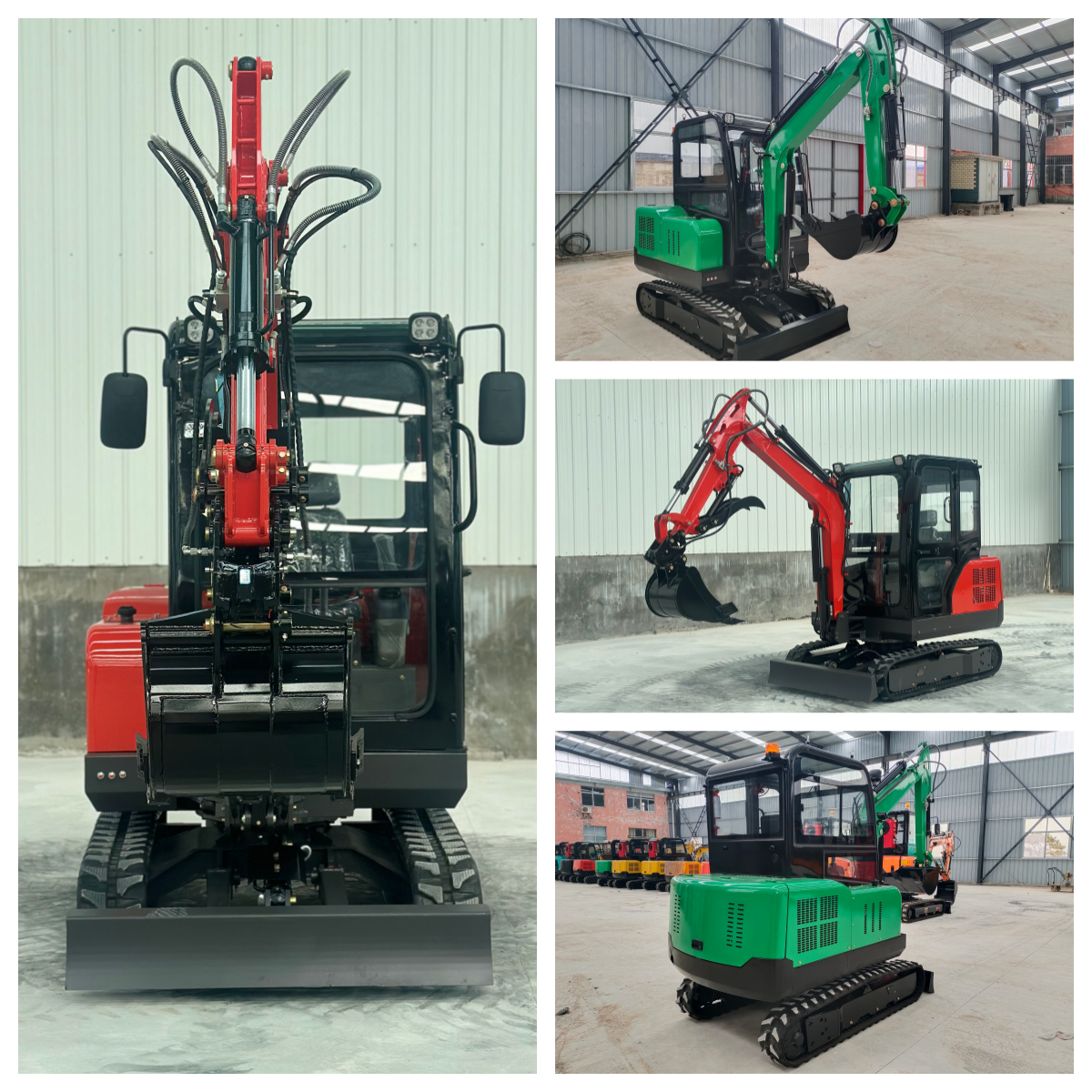

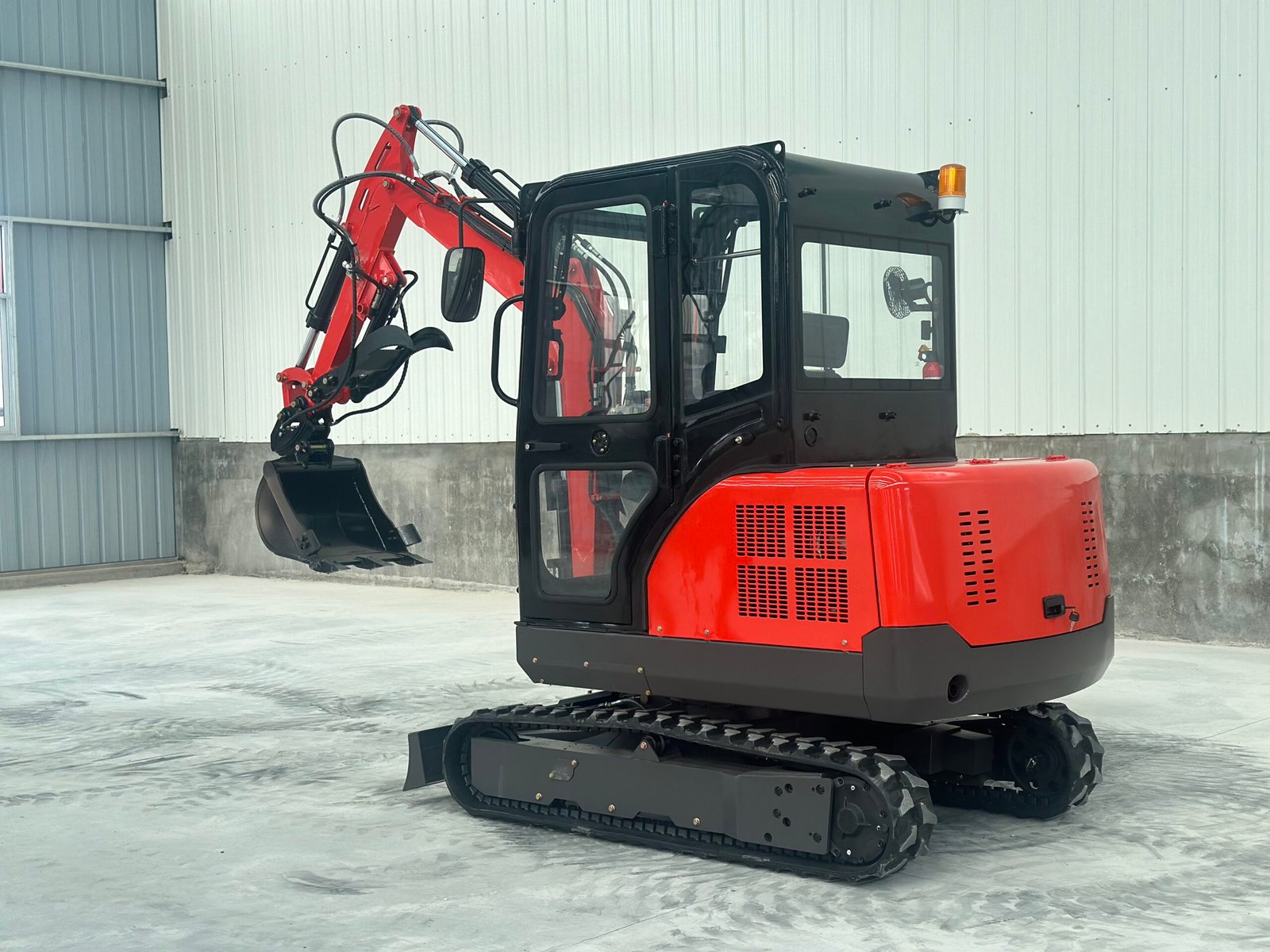

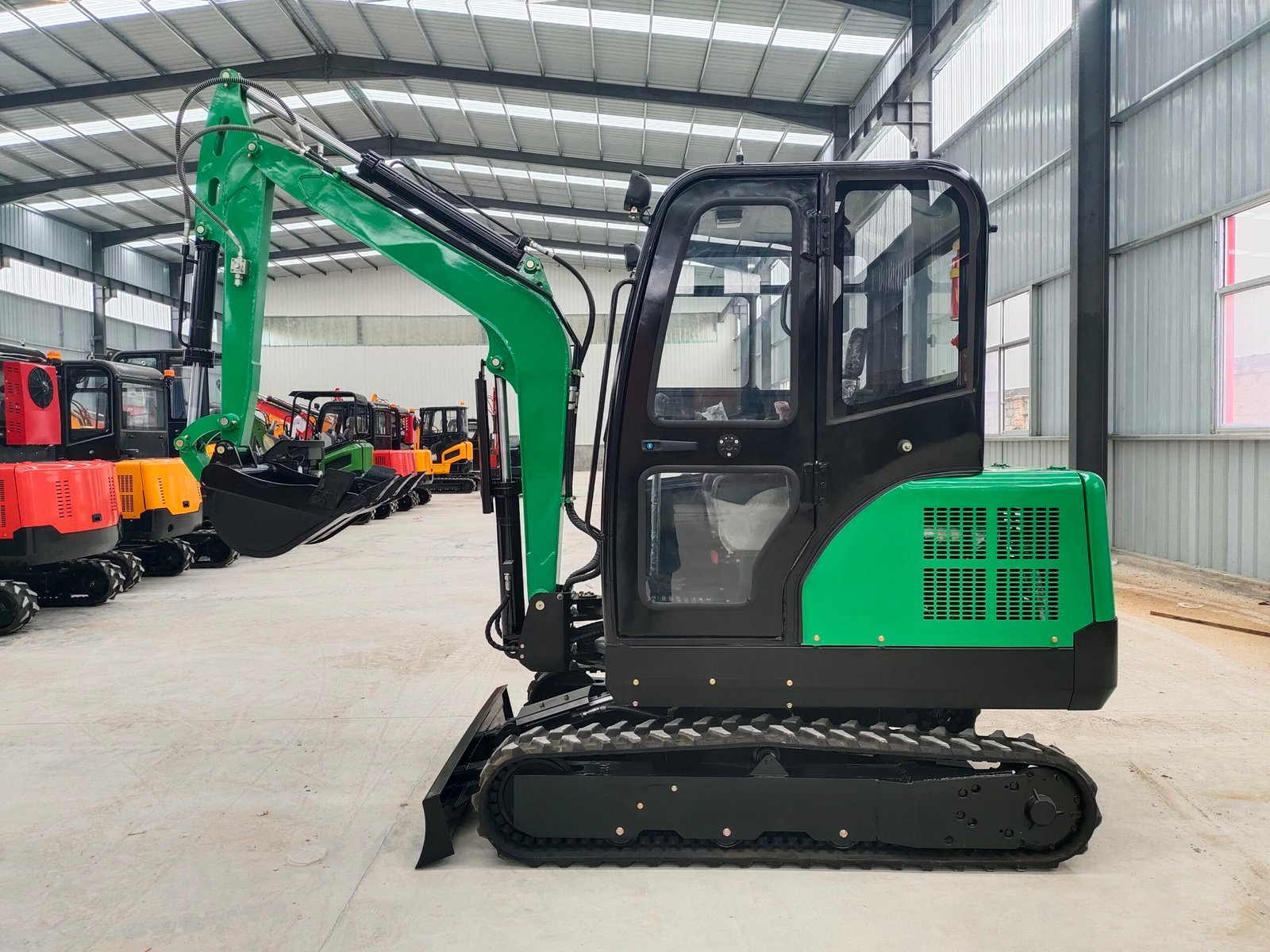

The Certeg CT30 is the ultimate compact excavator for contractors who are ready to take on bigger challenges. As a powerful 3.0-ton machine, it marks a significant step up from the micro class, delivering the enhanced digging depth, breakout force, and lifting capacity needed for more demanding projects.
From foundation work and utility trenching to small-scale demolition, the CT30 provides the performance of a larger machine while retaining a compact footprint for excellent maneuverability. It’s not just an upgrade; it’s an investment in serious productivity and profitability.
| MAIN DIMENSIONS | |
| Overall Length（mm） | 4348 |
| Overall Width（mm） | 1350 |
| Overall Height（mm） | 2159 |
| Track Width（mm） | 230 |
| Track Length（mm） | 1961 |
| Body Width（mm） | 1350 |
| SPECIFICATION | |
| Operation Weight（t） | 3ton |
| Rated Power | 20kw |
| Digging Bucket Capacity（m³） | 0.1 |
| Bucket Width | 500mm |
| Travel Speed（km/h） | 2.7km/h |
| Swing Speed | 10r/min |
| Body Swing Radius | 1291 |
| Body Swing Angle | 360 |
| Boom Swing Angle(L/R) | 55/45 |
| Max. Grade Ability | 35 |
| Fuel Tank（L) | 20L |
| Hydraulic Oil Tank（L) | 28L |
| WORKING RANGE | |
| Max. Digging Radius（mm） | 4477 |
| Max Digging Depth（mm） | 3058 |
| Max. Digging Height（mm） | 3445 |
| Max. Unloading Height（mm） | 2203 |
| Min. Swing Radius（mm） | 2165 |
| Max. Digging Depth Of Dozer Blade（mm） | 297 |
| Max. Lifting Height Of Dozer Blade（mm） | 230 |
The CT30 mini excavator, with a digging depth of 3058mm and a digging radius of 4477mm, is highly suitable for operations such as foundation engineering and public facility pipelines. It can easily enter narrow Spaces. This cost-effective and powerful excavator is an ideal choice for DIY enthusiasts and small contractors who wish to maximize their funds. It is the most economical choice in this series and the first choice for anyone entering the mini excavator field.
Our small excavators can be equipped with a variety of auxiliary tools, mainly including breakers, hydraulic shears, grabs, buckets, vibratory rammers, etc. Among them, the breaker hammer can break hard objects such as rocks and concrete. Hydraulic shears can cut steel bars, metal components, etc. The grab is used to grasp materials such as stones, wood and garbage. Buckets of different specifications can adapt to various operations such as digging and loading. Vibratory compactors are used to compact roadbeds, foundations, etc. These auxiliary tools enable small excavators to have a wider range of operational capabilities in fields such as construction, municipal works, and agriculture. You can choose the corresponding assistive devices according to your own needs.
