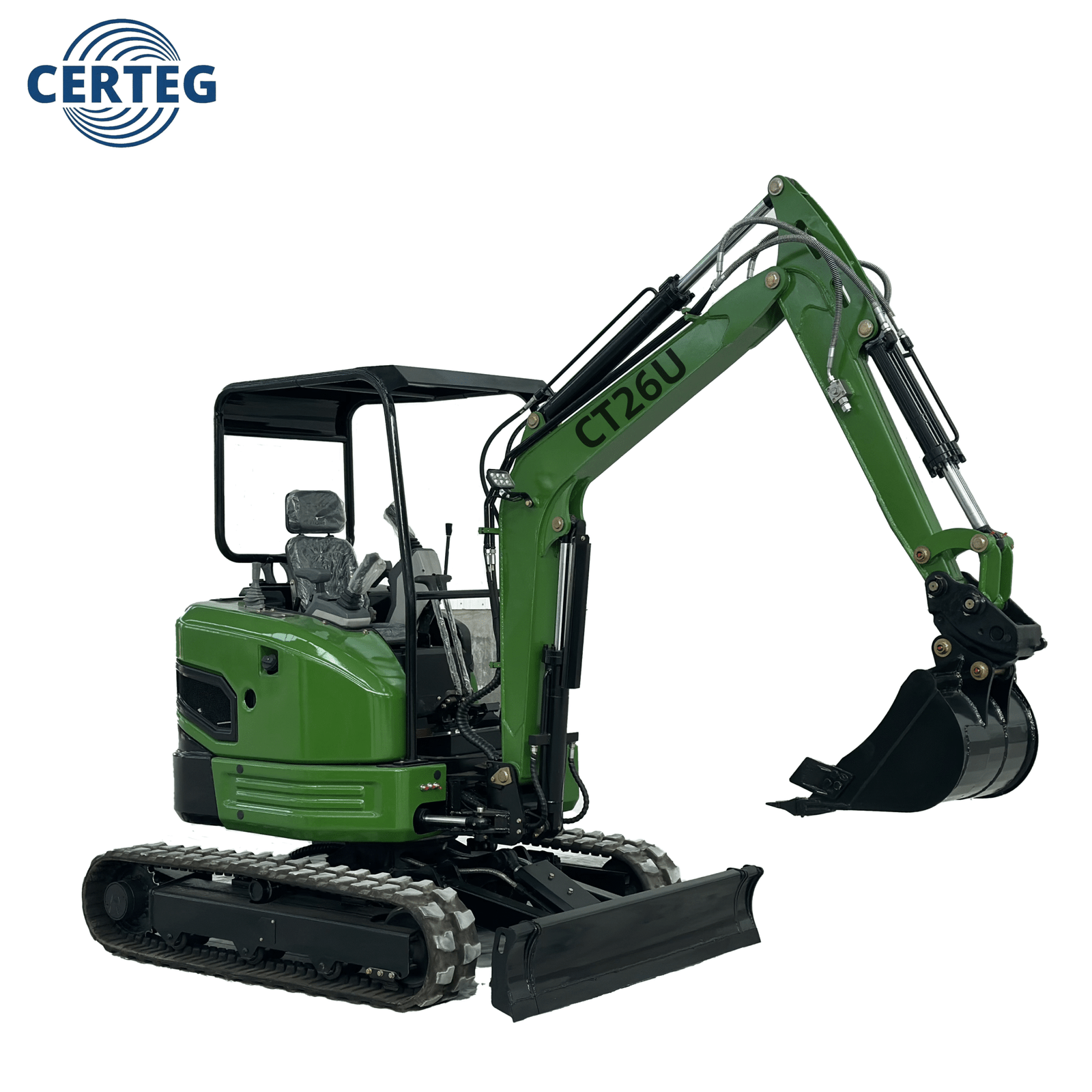

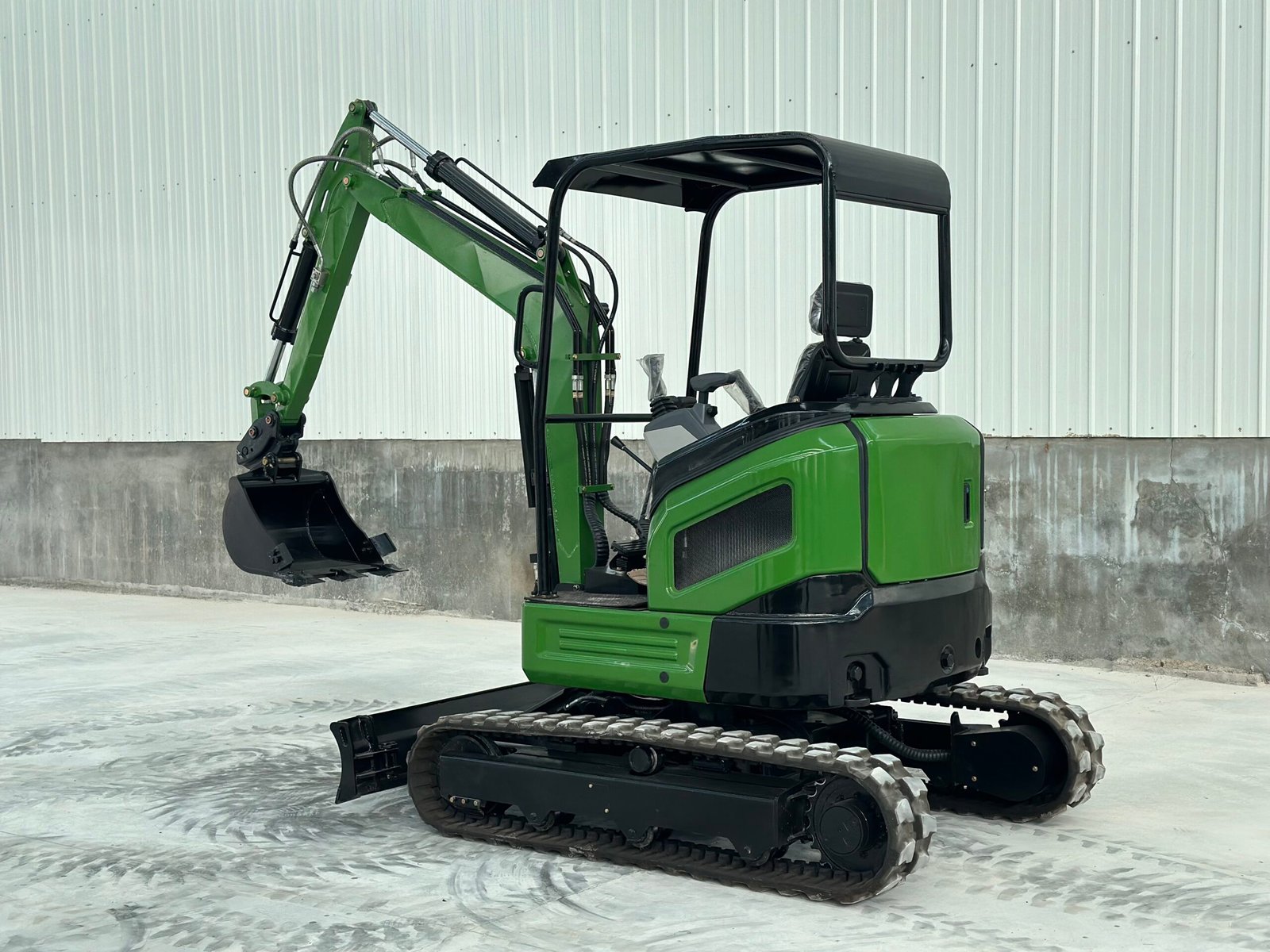

CT26U Mini Excavator
The company’s main products cover various types of small excavators, skid steer loaders and diverse attachments, which are widely used in agriculture, municipal administration, construction and logistics fields.
Recruiting Agents Globally:
Suitable for businesses/dealers, starting with one unit for overseas warehouses.
Customized for construction projects, not available for retail.
Inventory located at a warehouse near you, ensuring fast delivery and a comprehensive range of accessories.
Customer service is available 24/7.
Fill in your information, receive a quote, and become our agent!
Description

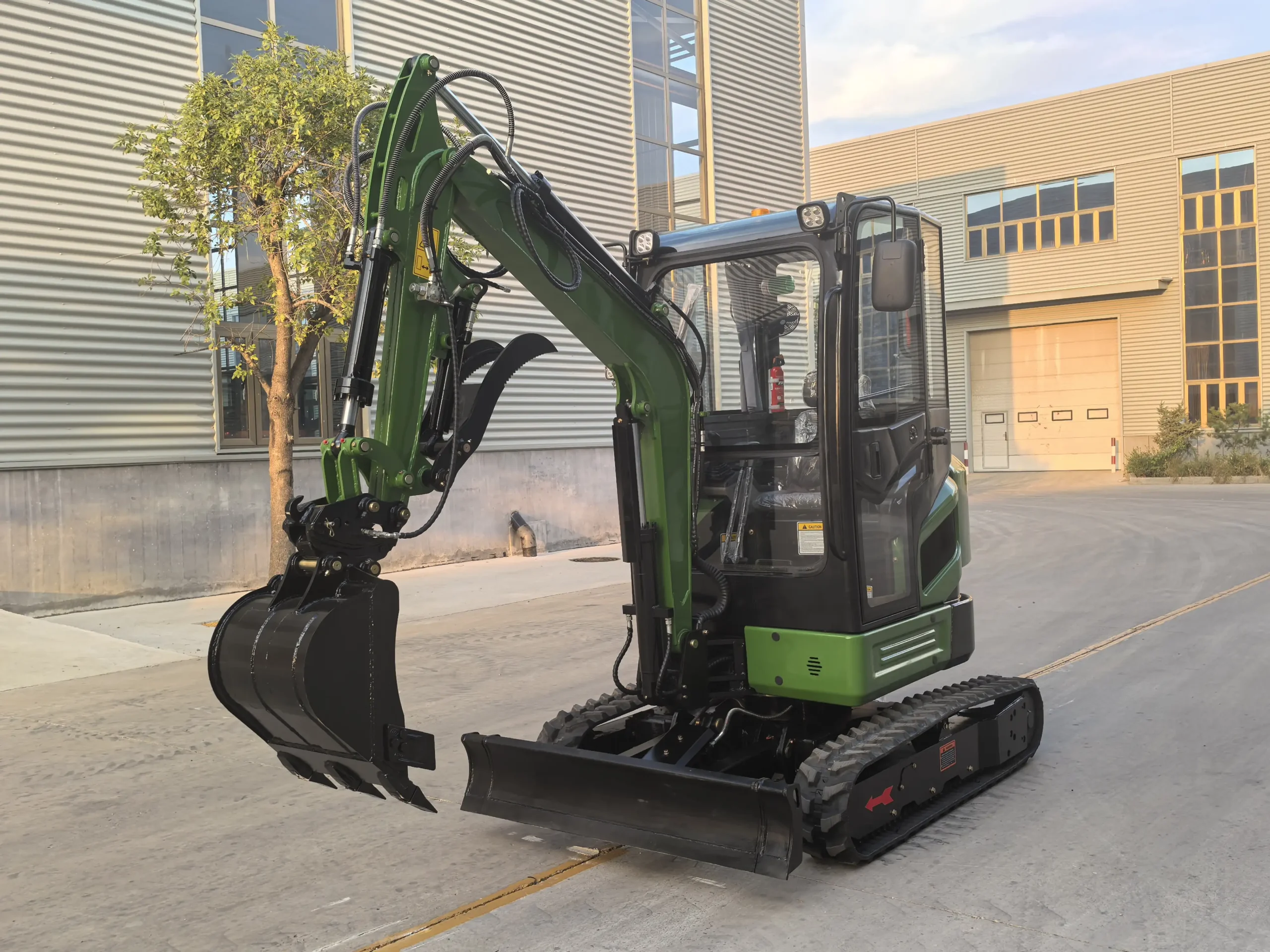

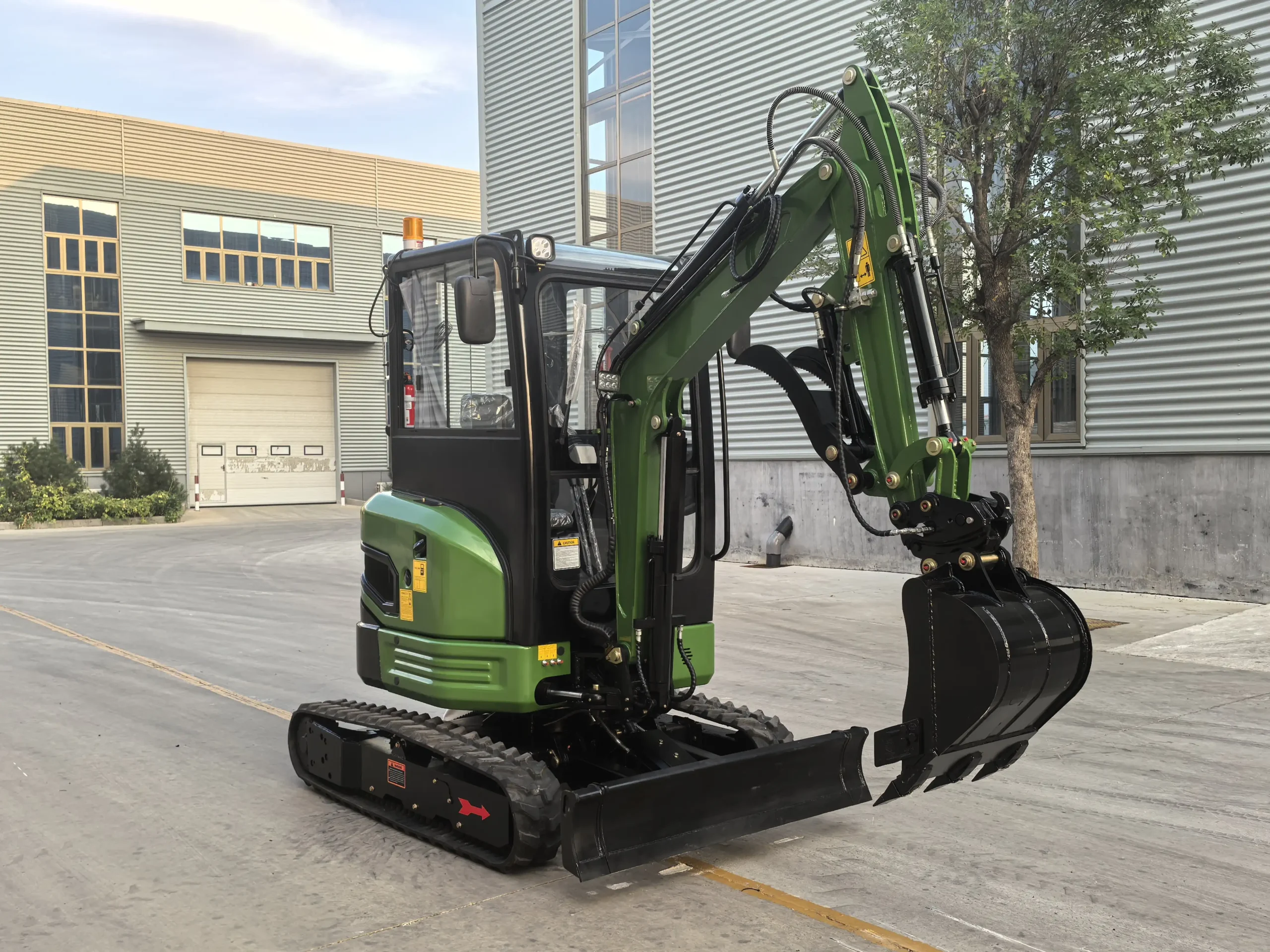

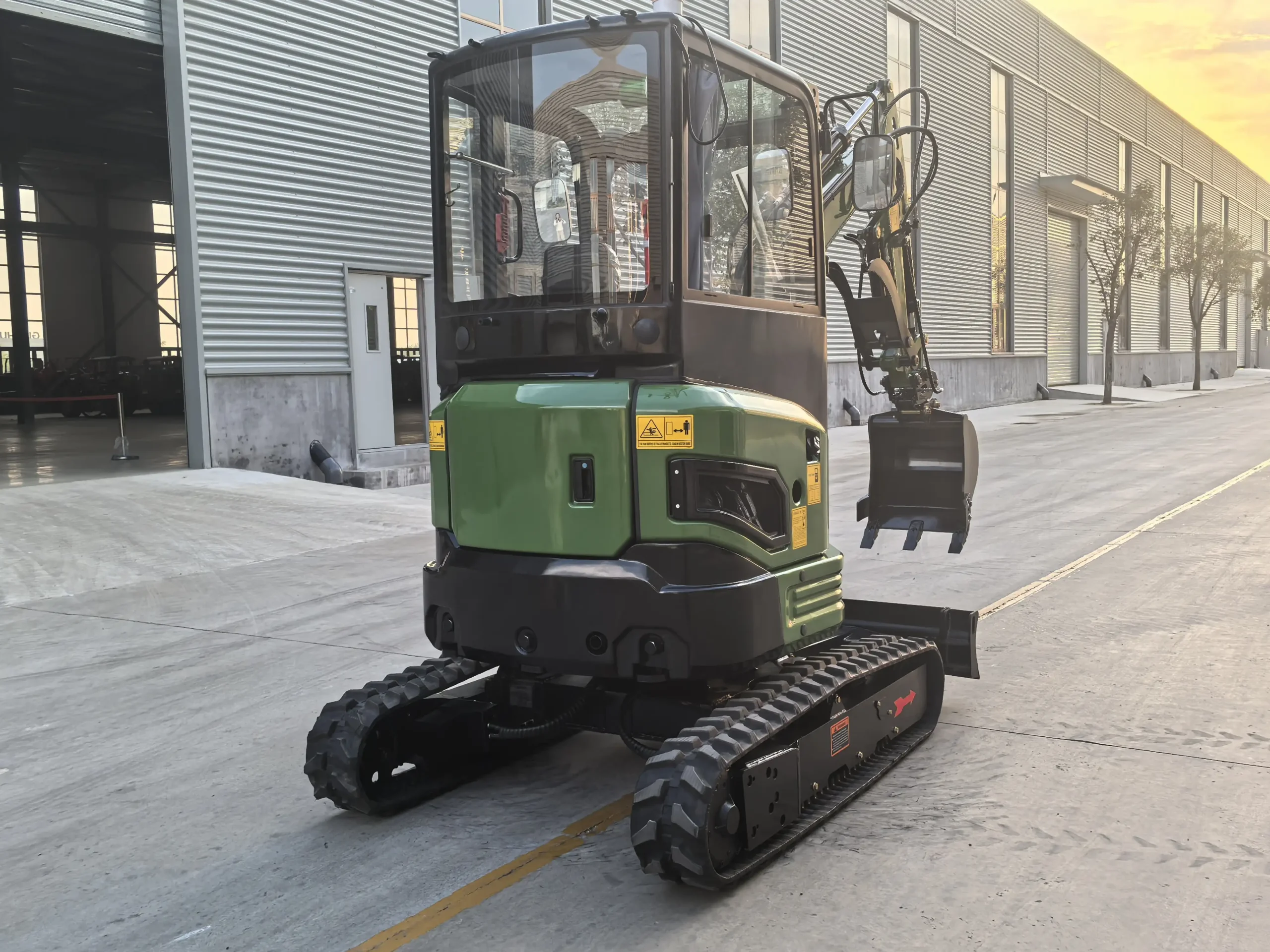

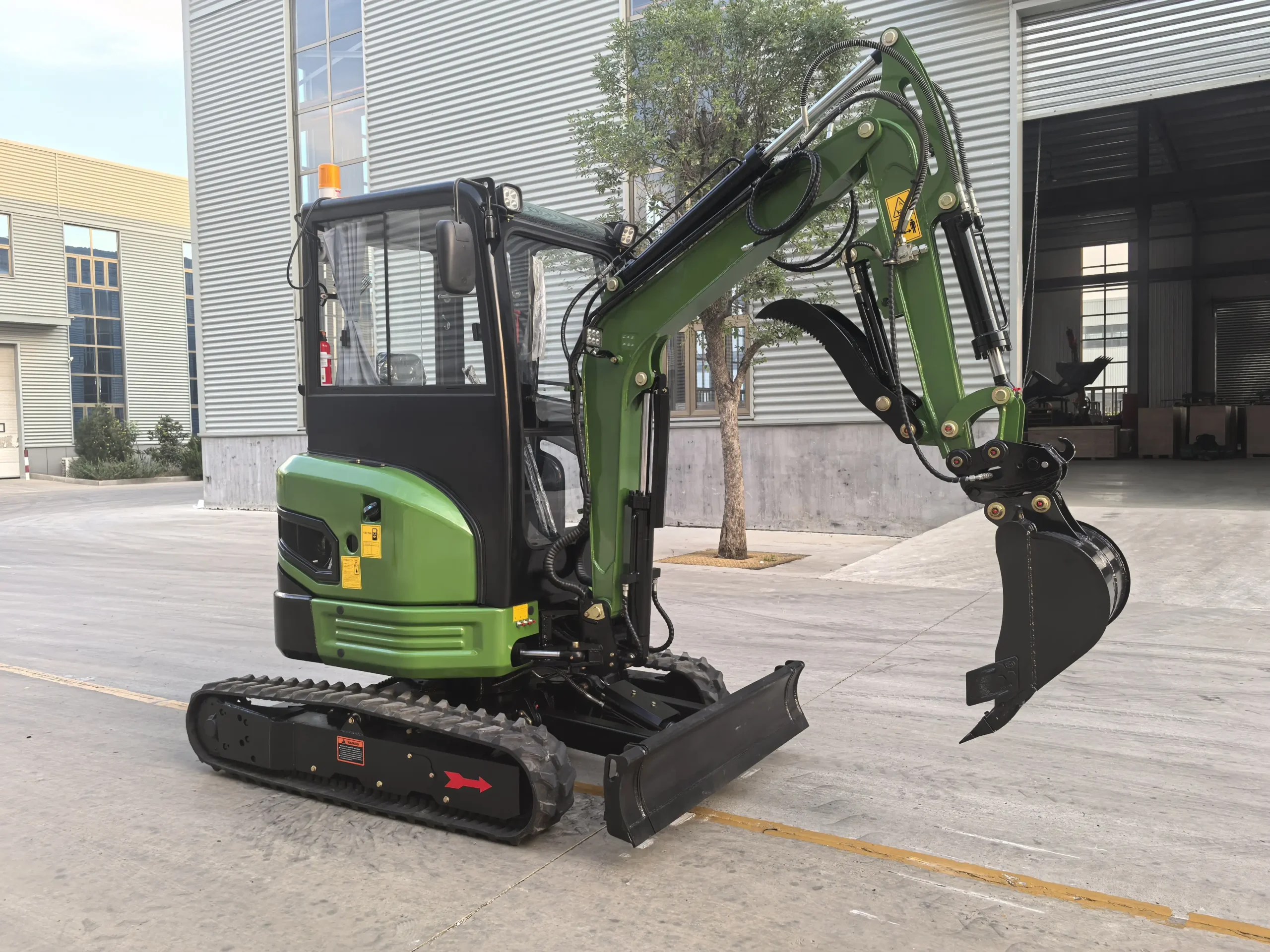

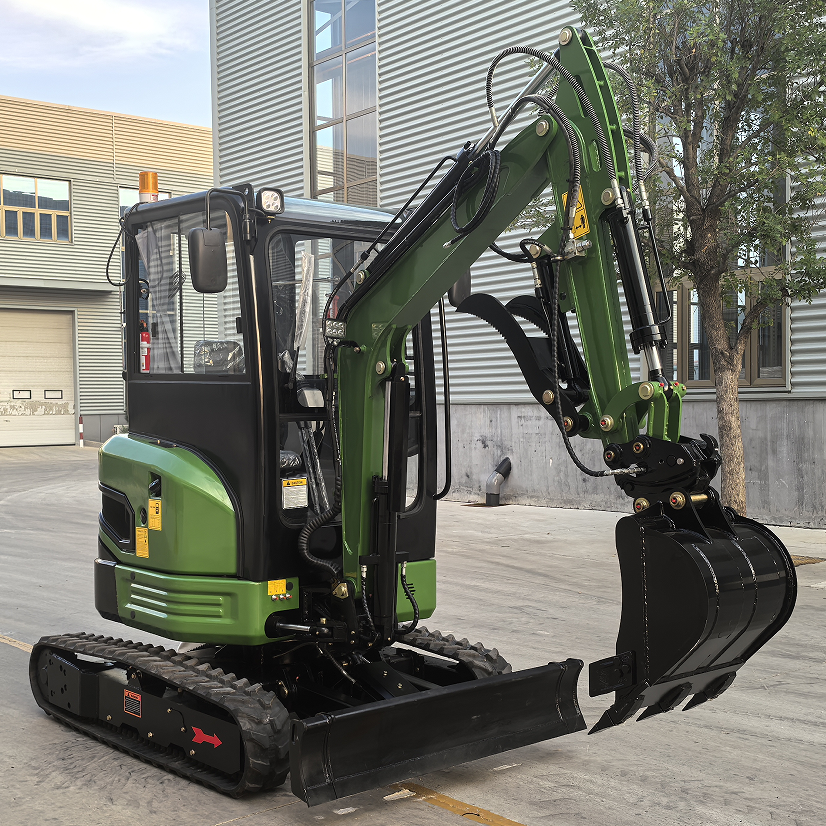

The CT26U mini excavator is equipped with a high-performance engine, delivering robust power with fuel efficiency to ensure stable output for various operations. Its cab features a user-centric design with wide visibility and ample operating space, complemented by an efficient air conditioning system that quickly adjusts temperatures—keeping operators comfortable during long hours of work, regardless of extreme heat or cold.
| SPECIFICATION | |
| Operation Weight | 2.6ton |
| Rated Power | 20kw |
| Digging Bucket Capacity（m³） | 0.075 |
| Bucket Width | 580mm |
| Travel Speed | 3.1 or 2 km/h |
| Swing Speed | 12r/min |
| Body Swing Radius | 923 |
| Body Swing Angle | 360° |
| Boom Swing Angle(L/R) | 55/45 |
| Max. Grade Ability | 35 |
| MAIN DIMENSIONS | |
| Overall Length（mm） | 3074 |
| Overall Width（mm） | 1500 |
| Overall Height（mm） | 2450 |
| Track Width（mm） | 250 |
| Track Length（mm） | 2100 |
| Body Width（mm） | 1500 |
| WORKING RANGE | |
| Max. Digging Radius（mm） | 4358 |
| Max Digging Depth（mm） | 2570 |
| Max. Digging Height（mm） | 3453 |
| Max. Unloading Height（mm） | 2366 |
| Min. Swing Radius（mm） | 2190 |
| Max. Digging Depth Of Dozer Blade（mm） | 291 |
| Max. Lifting Height Of Dozer Blade（mm） | 192 |
Core Advantages: Chinese-Made Mini Excavator

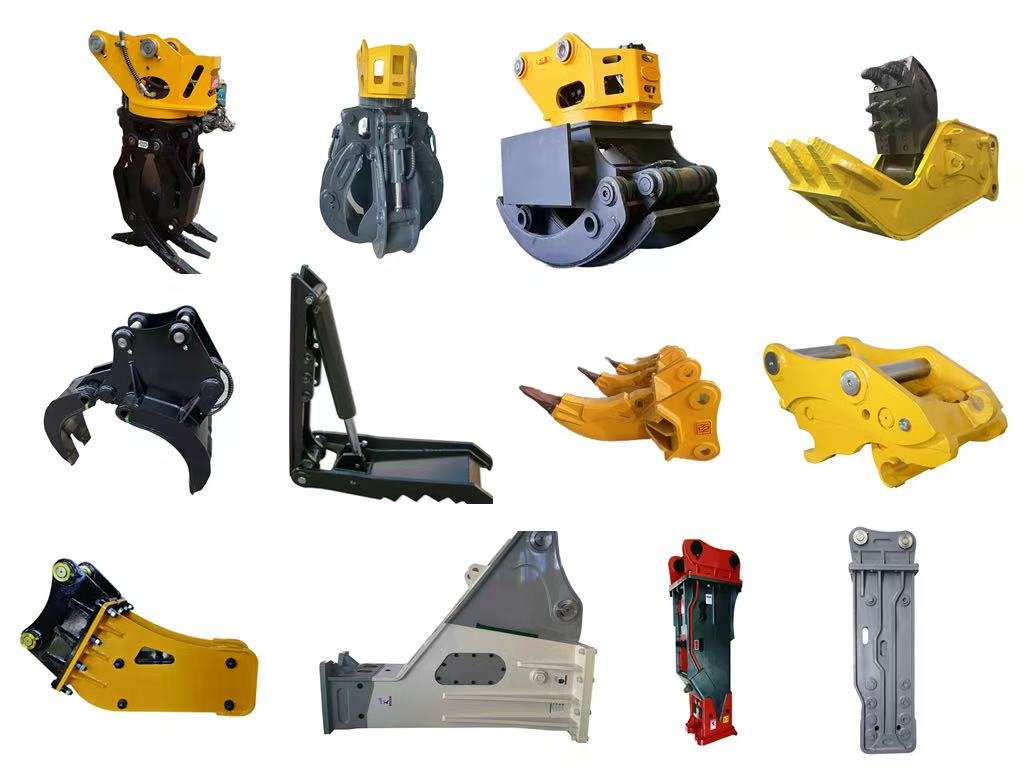

Our small excavators can be equipped with a variety of auxiliary tools, mainly including breakers, hydraulic shears, grabs, buckets, vibratory rammers, etc. Among them, the breaker hammer can break hard objects such as rocks and concrete. Hydraulic shears can cut steel bars, metal components, etc. The grab is used to grasp materials such as stones, wood and garbage. Buckets of different specifications can adapt to various operations such as digging and loading. Vibratory compactors are used to compact roadbeds, foundations, etc. These auxiliary tools enable small excavators to have a wider range of operational capabilities in fields such as construction, municipal works, and agriculture. You can choose the corresponding assistive devices according to your own needs.
