CT180W 18 Ton High-Performance Mobile Wheel Digger by CERTEG
The company’s main products cover various types of small excavators, skid steer loaders and diverse attachments, which are widely used in agriculture, municipal administration, construction and logistics fields.
Recruiting Agents Globally:
Suitable for businesses/dealers, starting with one unit for overseas warehouses.
Customized for construction projects, not available for retail.
Inventory located at a warehouse near you, ensuring fast delivery and a comprehensive range of accessories.
Customer service is available 24/7.
Fill in your information, receive a quote, and become our agent!
Description

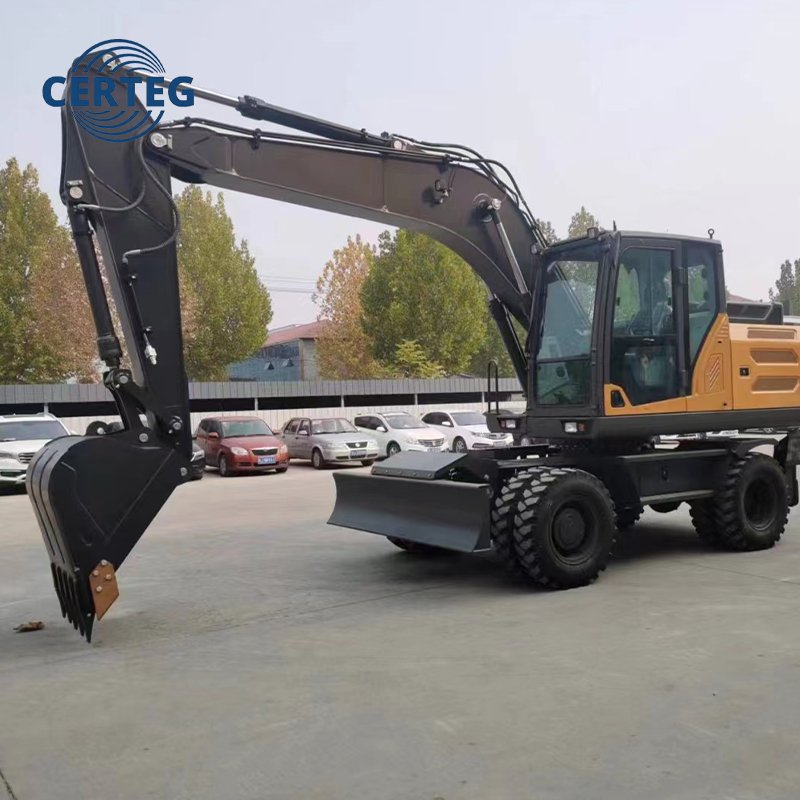

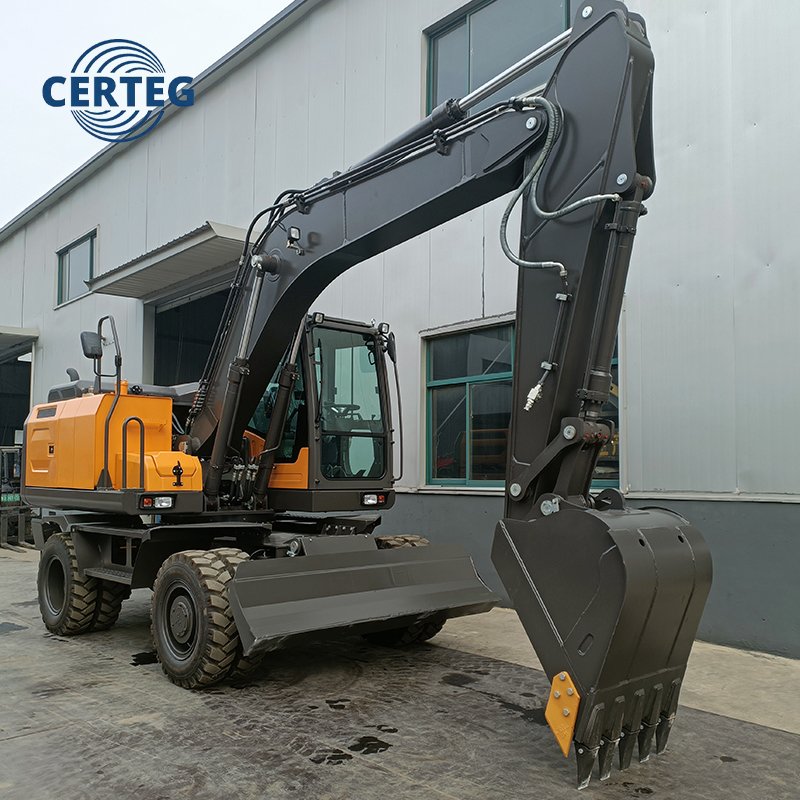

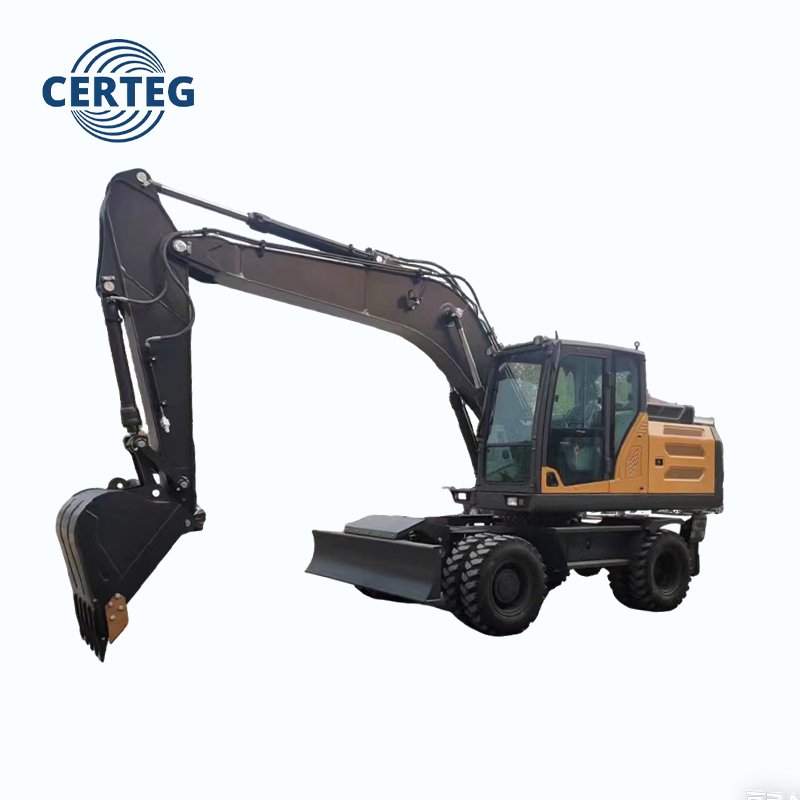

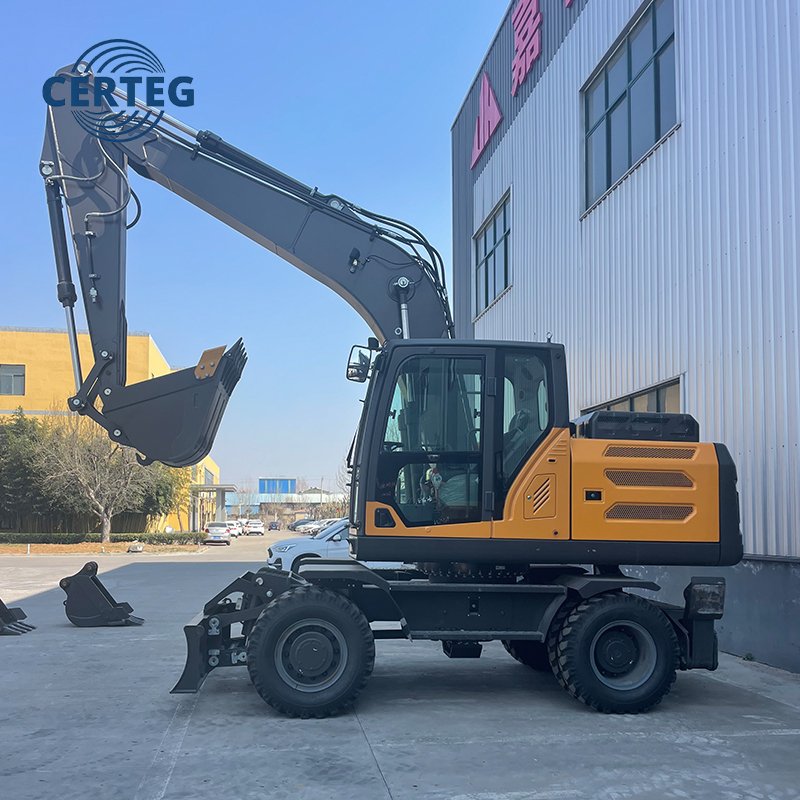

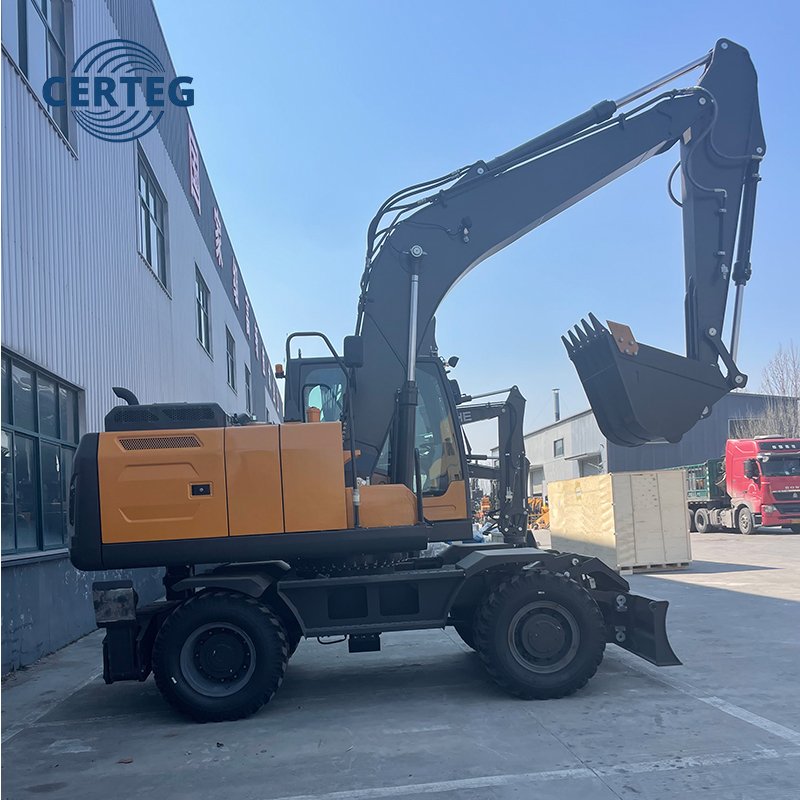

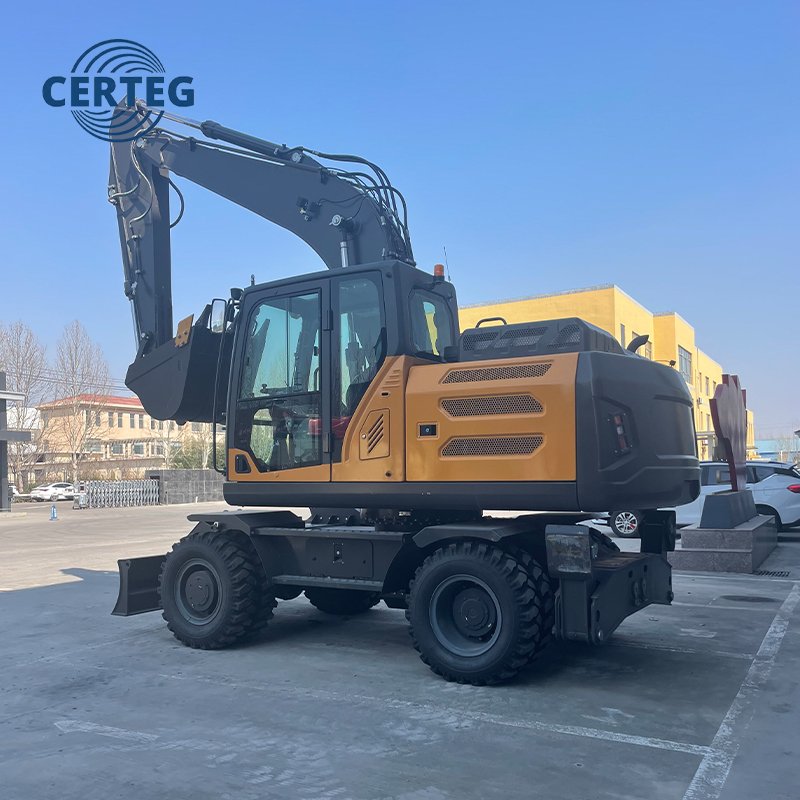

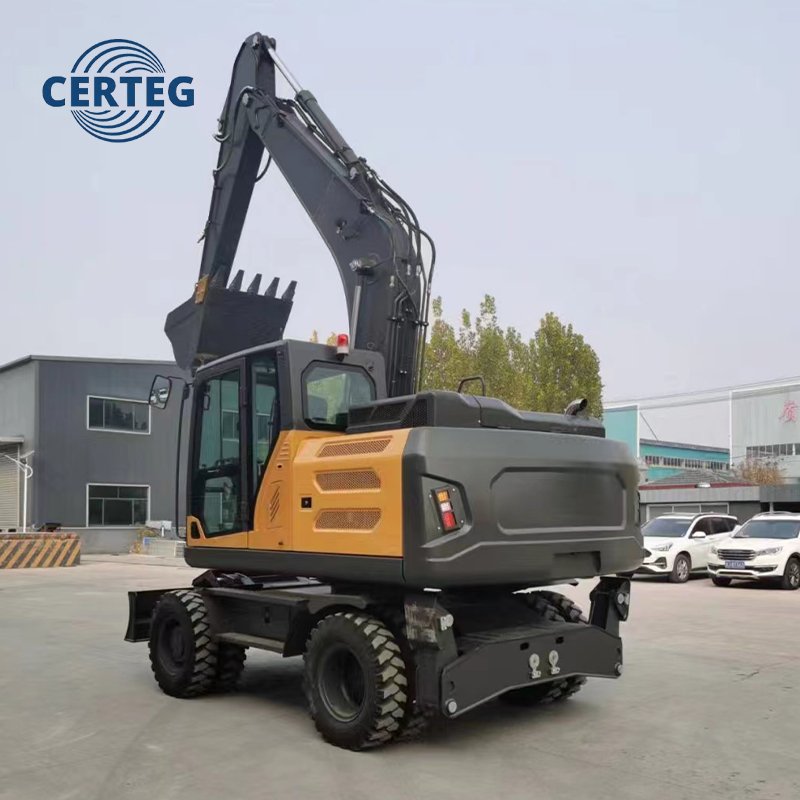

The 18 Ton Wheeled Excavator CT180W is the ultimate heavy-duty powerhouse in our mobile series. Specifically developed for large-scale earthmoving, mining-lite operations, and massive civil engineering projects, this 18 Ton Wheeled Excavator offers the digging depth and lifting capacity of a large crawler unit with the rapid site-to-site agility of a wheeled platform. It is the perfect solution for contractors who require maximum productivity across multiple work zones without the logistical delays of low-boy trailers.
| SPECIFICATIONS | |
| Bucket Capacity（m³） | 0.8 |
| Swing Speed（rmp） | 0-12 |
| Gradeablity（°） | 25 |
| Max.Bucket Digging Force（KN） | 100 |
| Max.Arm Digging Force（KN） | 70 |
| Engine Model | B5.9CS4-150C |
| Power/revolution speed(KW/rmp) | 110/2200 |
| Tire Model | 10.00-20 |
| System Pressure(MPa) | 32 |
| MACHINE SIZE | |
| Dimension Length*Width*Height(mm) | 8050*2500*3255 |
| Cabin Height(mm) | 3150 |
| Axle Base(mm) | 2600 |
| Wheel(track)Distance(mm) | 1955 |
| Minimum Ground Clearance(mm) | 293 |
| Tail Swing Radius(mm) | 2335 |
| WORKING RANGE | |
| Max. Digging Height（mm） | 9200 |
| Max Dumping Height（mm） | 6620 |
| Max. Digging Depth（mm） | 5350 |
| Max. Vertical Digging Depth（mm） | 4685 |
| Min. Digging Radius（mm） | 8480 |
| Max. Swing Radius（mm） | 2723 |
| Max.Dozer Blade Lifting Distance(mm) | 420 |
| Max.Dozer Blade Cutting Distance(mm) | 85 |
Why Choose the CT180W for Your Fleet?
At Certeg Machinery, we build the CT180W to stand up to the most punishing environments. With a reinforced heavy-duty boom and arm as standard, this 18 Ton Wheeled Excavator ensures maximum uptime and a high resale value.
Core Applications
Major highway and airport infrastructure development.
Large-scale urban sewage and water main installations.
Foundation digging for commercial and industrial complexes.
Heavy material handling in large recycling centers and ports.
