92KW Backhoe Loader for Sale | CERTEG CTB25-30
The company’s main products cover various types of small excavators, skid steer loaders and diverse attachments, which are widely used in agriculture, municipal administration, construction and logistics fields.
Recruiting Agents Globally:
Suitable for businesses/dealers, starting with one unit for overseas warehouses.
Customized for construction projects, not available for retail.
Inventory located at a warehouse near you, ensuring fast delivery and a comprehensive range of accessories.
Customer service is available 24/7.
Fill in your information, receive a quote, and become our agent!
Description

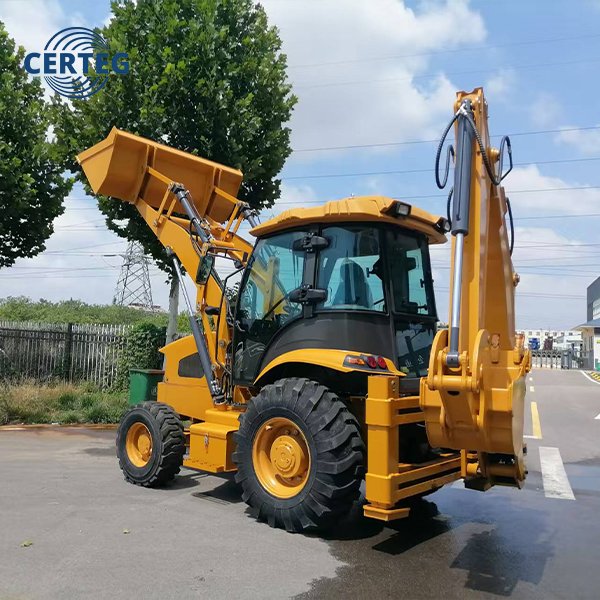

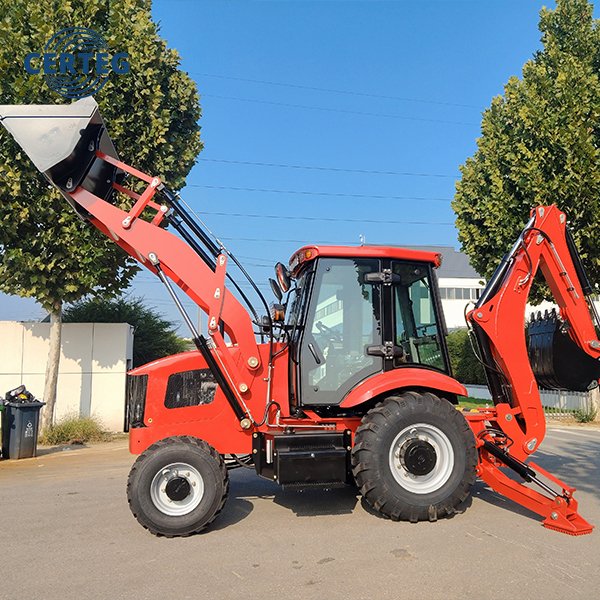

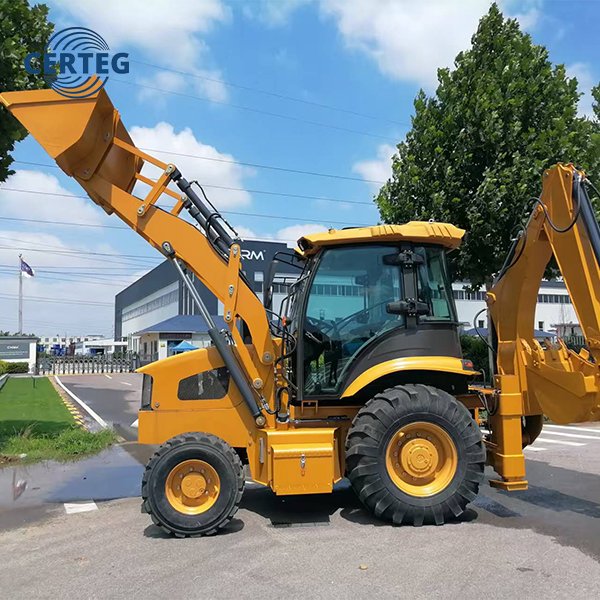

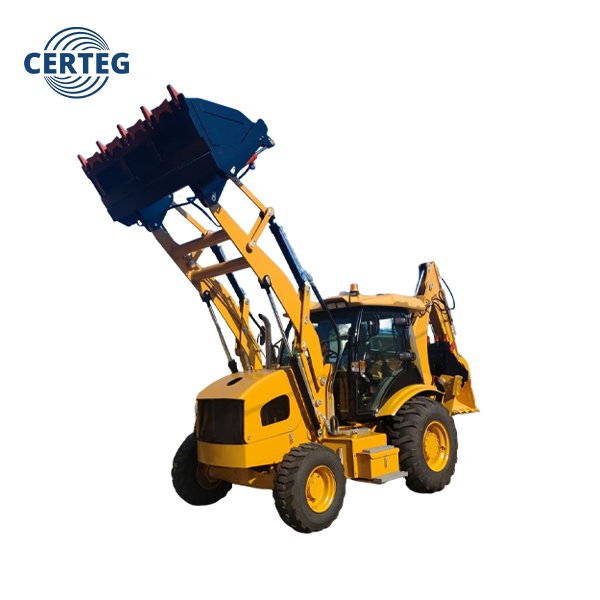

CTB25-30: The Ultimate 92kW Backhoe Loader for Peak Performance
CERTEG CTB25-30, our flagship backhoe loader engineered for contractors who demand uncompromising power and large-scale capability. This machine is a true titan of the job site, built to tackle the most substantial projects with unparalleled efficiency. At its heart lies a formidable 92 kW turbocharged engine, which, combined with a heavy-duty 4-Wheel Drive system and an exceptionally large 1.2 m³ loader bucket, makes the CTB25-30 the ultimate all-in-one solution for heavy construction, large-scale earthmoving, and major infrastructure projects.
| Category | Parameter | Value |
| Overall Dimensions | Overall Dimensions (L×W×H) | 6500 × 2040 × 2800 mm |
| Wheelbase | 2675 mm | |
| Axle Track | 1630 mm | |
| Min. Ground Clearance | 280 mm | |
| Performance | System Pressure | 18 MPa |
| Overall Weight | 6200 kg | |
| Max. Travel Speed | 28 km/h | |
| Max. Gradeability | 25° | |
| Min. Turning Radius | 4500 mm | |
| Loader Specs | Max. Dumping Height | 3500 mm |
| Max. Dumping Distance | 900 mm | |
| Bucket Width | 2200 mm | |
| Bucket Capacity | 1.2 m³ | |
| Max. Lifting Height | 4300 mm | |
| Max. Breakout Force | 42 kN | |
| Bucket Cycle Time | 12 s | |
| Backhoe Specs | Max. Digging Depth | 2600 mm |
| Digging Dumping Height | 2300 mm | |
| Max. Digging Radius | 4600 mm | |
| Bucket Width | 650 mm | |
| Bucket Capacity | 0.25 m³ | |
| Max. Digging Height | 4300 mm | |
| Max. Digging Force | 28 kN | |
| Swing Angle | 180° | |
| Engine | Model | Yunnei YN48GBZ |
| Type | Turbocharged, 4-Stroke | |
| Rated Power | 92 kW | |
| Rated Speed | 2400 r/min | |
| Cylinder No. – Bore | 4 – 108 mm | |
| Drivetrain | Transmission Type | Powershift, Fixed Shaft |
| Gears | 2 Forward, 2 Reverse | |
| Torque Converter Model | ZL29A | |
| Drive Type | 4-Wheel Drive (4WD) | |
| Steering & Axle | Steering Type | Articulated Full Hydraulic |
| Steering Angle | 33° | |
| Axle Type | Wheel-end Reduction | |
| Brakes & Tires | Tire Specification | 16/70-20 |
| Tire Pressure (Front/Rear) | 250 KPa | |
| Service Brake | Air-over-hydraulic Disc Brake | |
| Parking Brake | Manual | |
| Braking Distance | 620 mm | |
| Fluid Capacities | Fuel Tank Capacity | 50 L |
| Hydraulic Oil Tank Capacity | 50 L |
Dominant Turbocharged Power & Drivetrain
The foundation of the CTB25-30’s performance is its massive 92 kW (123 HP) YN48GBZ turbocharged engine. This powerhouse delivers the immense torque required for heavy lifting and aggressive digging. To effectively translate this power into unstoppable momentum, the machine is equipped with a state-of-the-art drivetrain.
High-Capacity, High-Productivity Front Loader
Harnessing this incredible power, the front-end loader is designed for maximum productivity and material handling efficiency. It boasts an immense 42 kN breakout force to power through any stockpile.
Deep-Digging, Long-Reach Backhoe
Equally impressive, the rear-mounted excavator arm combines raw strength with an extensive working range, making it ideal for deep excavation and large-scale trenching.
Ideal Applications
The immense power and capacity of this large backhoe loader for sale make it the perfect choice for:
Large-Scale Commercial & Civil Construction
Roadbuilding and Major Infrastructure Projects
Quarrying and Bulk Material Handling
Large Agricultural Earthmoving and Land Clearing
Heavy-duty Municipal Works
