Description

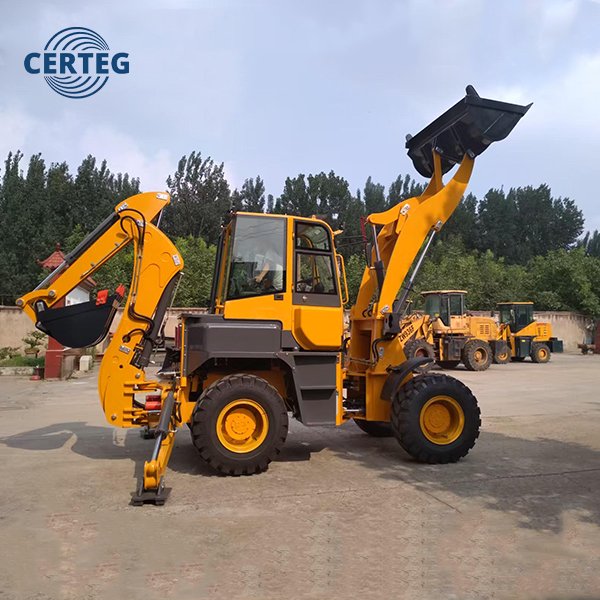

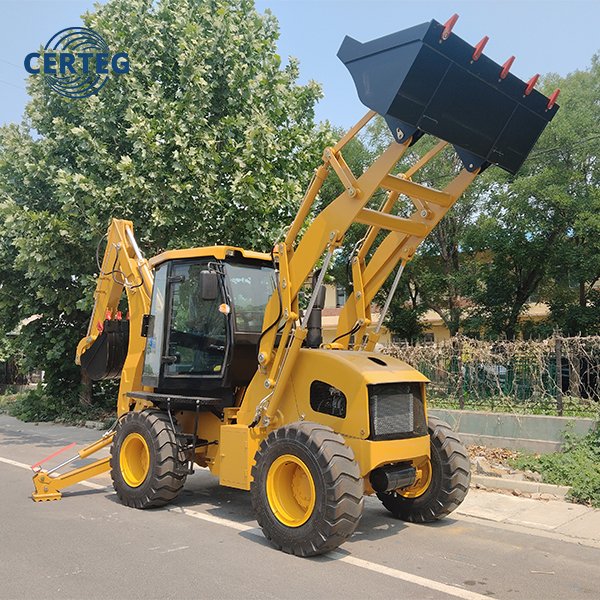

CTB40-28: The Ultimate 8 Ton Backhoe Loader for Heavy-Duty Performance
CERTEG CTB40-28, our premier 8 ton backhoe loader, engineered from the ground up for maximum power and productivity in the most demanding environments. This machine is a true heavy-duty workhorse, combining the immense strength of a 75kW Yuchai engine with the all-terrain capability of a full hydraulic Four-Wheel Drive system. Consequently, the CTB40-28 is the definitive all-in-one solution for large-scale construction, infrastructure projects, and heavy-duty earthmoving. When your project requires the pinnacle of power, reach, and reliability, the CTB40-28 is built to deliver.
| Category | Parameter | Value |
| General Specs | Overall Operating Weight | 8000 kg |
| Transport Dimension (L×W×H) | 6120 × 2410 × 3763 mm | |
| Cab to Ground Height | 2900 mm | |
| Wheelbase | 2248 mm | |
| Min. Ground Clearance | 300 mm | |
| Loader Specs | Bucket Capacity | 1.0 m³ |
| Loading Lifting Capacity | 2500 kg | |
| Bucket Dumping Height | 2700 mm | |
| Bucket Dumping Distance | 925 mm | |
| Breakout Force | 38 kN | |
| Backhoe Specs | Backhoe Bucket Capacity | 0.3 m³ |
| Digging Depth (Standard/Max) | 3800 / 4500 mm | |
| Swing Angle of Excavator | 190° | |
| Max. Tractive/Pulling Force | 39 kN | |
| Engine | Model | Yuchai (75kW) – Optional |
| Type | In-Line, Direct Injection, 4-Stroke | |
| Transmission | Torque Converter Model | YJ280 |
| Torque Converter Type | Single-stage, 3-element | |
| Gearbox Type | Fixed Shaft, Power Transmission | |
| Gears | 2 Forward, 2 Reverse | |
| Max. Speed | 28 km/h | |
| Axle & Reducer | Final Reducer Type | Single Stage |
| Rated Load of Axle | 8 / 18.5 T | |
| Brakes & Tires | Tire Model | 14-17.5 / 19.5L-24 |
| Front Tire Pressure | 0.55 MPa | |
| Rear Tire Pressure | 0.223 MPa | |
| Service / Emergency Brake | Power Implementing Brake |
Dominant Power & Drivetrain
The foundation of the CTB40-28’s capability is its high-performance 75 kW (100 HP) Yuchai engine, delivering the massive torque needed for aggressive digging and heavy lifting. To effectively translate this power into unstoppable momentum, this 8 ton backhoe loader is equipped with a state-of-the-art full hydraulic drivetrain.
High-Capacity Front-End Loader
Harnessing this incredible power, the front-end loader is designed for maximum material handling efficiency. It boasts an immense 38 kN breakout force to power through any stockpile.
Extended-Reach, Deep-Digging Backhoe
Equally impressive, the rear-mounted excavator arm is a master of reach and power, making it ideal for deep excavation and large-scale trenching.
Ideal Applications
The robust construction and powerful performance of this heavy-duty backhoe loader make it ideal for:
Large-Scale Construction & Site Development
Roadbuilding and Municipal Projects
Major Utility and Pipeline Trenching
Quarrying and Material Stockpiling
Large Agricultural Earthmoving
The CTB40-28 is more than just a machine—it’s an investment in productivity and reliability. To explore our other models, check out our full range of backhoe loaders.
